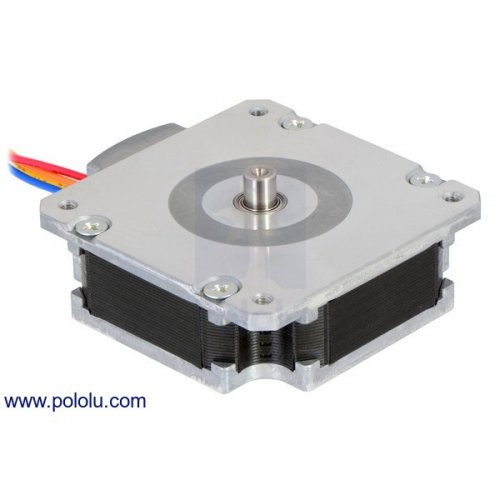

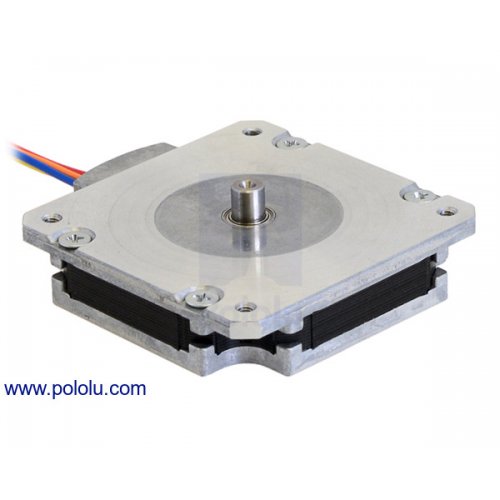

This pancake bipolar stepping motor from Sanyo has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 4.5V / 5.9V, allowing for a holding torque of 1 kg-cm (14 oz-in) / 2.2 kg-cm (30 oz-in). The motor has four color-coded wires terminated with bare leads: red and yellow connect to one coil; orange and blue connect to the other. It can be controlled by a pair of suitable H-bridges (one for each coil).
Specifications:
Applications:
- Printers
- CNC machines
- 3D printer/prototyping machines (e.g. RepRap)
- Laser cutters
- Pick and place machines
- Linear actuators
- Hard drives
Documents:
Warranty:
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x Pololu 2297 Sanyo Pancake Stepper Motor: Bipolar, 200 Steps/Rev
| Motor Specifications | |
| Type | Stepper Motor: Bipolar |
| Torque | 2297-1 kg-cm (14 oz-in), 2299-2.2 kg-cm (30 oz-in) |
| Shaft Diameter | 5mm |
| Steps per revolution | 200 |
| Electrical Specifications | |
| Maximum Operating Voltage | 2297-4.5V, 2299-5.9V |
| Maximum Operating Current | 1 A per Coil |
| Resistance | 2297-4.5 Ω per coil, 2299-5.9 Ω per coil |
| Inductance | 2297-2 mH per coil, 2299-3.2 mH per coil |
| Physical Attributes | |
| Weight | 2297-90g, 2299-150g |
| Dimensions | 2297-50 mm square × 11 mm, 2299-50 mm square × 16 mm, not including the shaft |
| Length | Lead length: 30 cm (12″) |
| Additional Information | |
| Warranty | |
Pololu 2297 / 2299 Sanyo Pancake Stepper Motor: Bipolar, 200 Steps/Rev
- Brand: Pololu
- Product Code:Pololu-2297-99-Stepper-Motor
- Reward Points:77
- Availability:In Stock
-
रo 7,679.00
- Price in reward points:7679
-
- 2 or more रo 7,618.00
- 4 or more रo 7,556.00
- 10 or more रo 7,495.00
- 20 or more रo 7,433.00
Available Options
