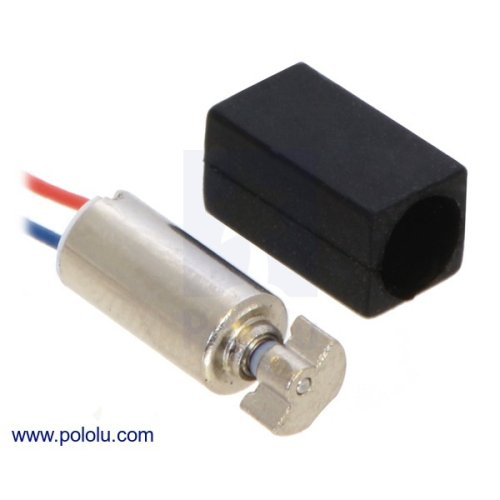

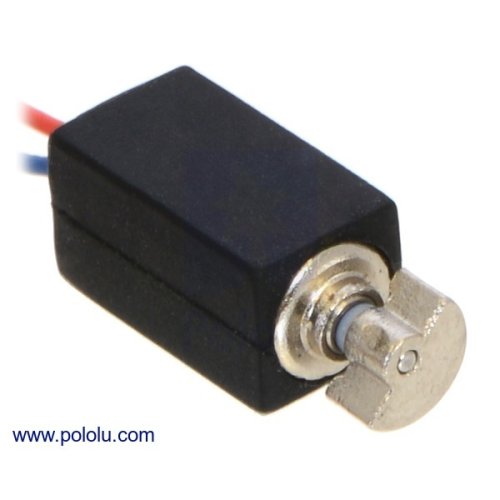

This tiny DC motor produces vibrations by spinning an eccentric shaft at over 10,000 RPM when powered at 3 V. Motors like this are commonly found in cell phones and other devices that use vibration for tactile feedback, and its small size (11.6 × 4.6 × 4.8 mm) and light weight (0.8 g) make it easy to integrate into systems with tight space constraints. The motor has 1.5″ leads and is encased in a removable rubber sleeve that gives it flat surfaces for mounting and prevents it from chattering against whatever it is mounted to. It is intended for operation around 3 V (2.4 V to 3.5 V recommended), and polarity is not important (the motor can run CW or CCW). See the datasheet under the resources tab for more information on this motor.

Specifications:
  • No-load speed @ 3V: 12500 rpm
  • No-load current @ 3V: 65 mA
  • Stall current @ 3V: 100 mA
  • Voltage: 3 V
Documents:
Package Includes:
  • 1 x Pololu 2265 Vibration Motor 11.6×4.6×4.8mm
Motor Specifications
Speed (RPM) 12500 rpm
Electrical Specifications
Maximum Operating Voltage 3V
Minimum Operating Current No-load current @ 3V: 65 mA Stall current @ 3V: 100 mA
Physical Attributes
Weight 0.8g
Dimensions 11.6×4.6×4.8mm
Additional Information
Warranty

Write a review

Please login or register to review

Pololu 2265 Vibration Motor 11.6×4.6×4.8mm

  • Brand: Pololu
  • Product Code:Pololu-2265-Motor
  • Reward Points:4
  • Availability:In Stock
  • रo 406.00

  • Price in reward points:406

  • 25 or more रo 387.00
  • 35 or more रo 384.00
  • 100 or more रo 367.00
  • 190 or more रo 364.00
  • 250 or more रo 351.00
  • 500 or more रo 342.00
