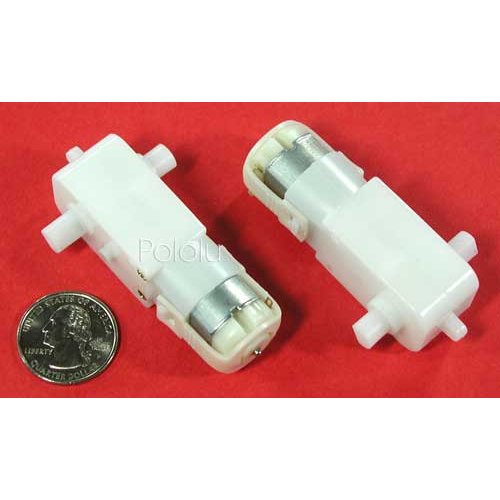

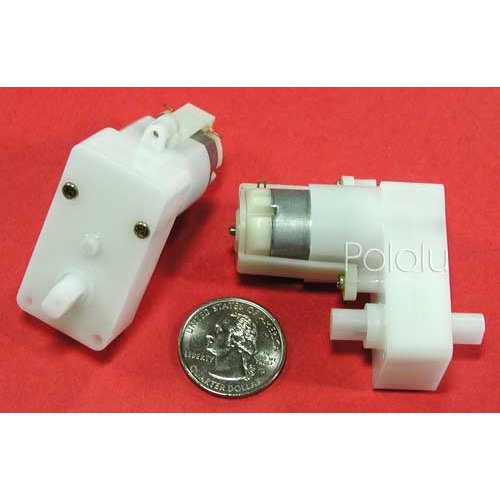

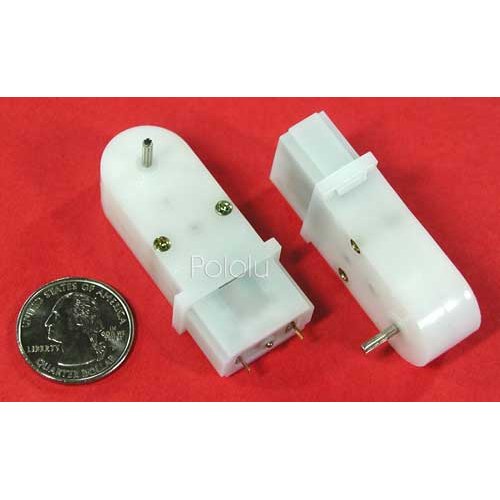

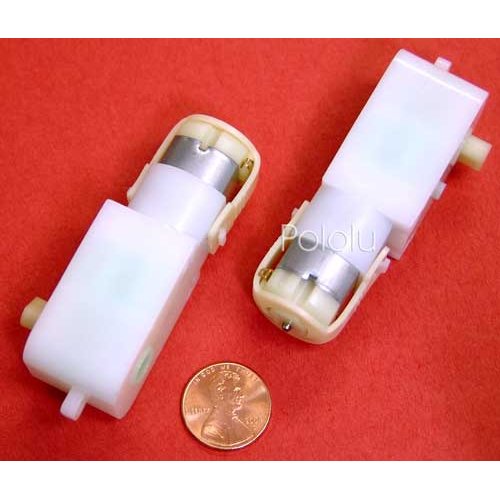

This 224:1 / 120:1 / 143:1 gearmotor (gearbox with brushed DC motor) is a great low-cost alternative to modified hobby servos or Tamiya gearboxes. The low-current motor is a perfect match for our qik 2s9v1 dual serial motor controller, and the compact size makes this unit an attractive choice for small robot designs.

This gearmotor comes pre-assembled, with the gears fully enclosed. There are built-in mounting holes, and the output shaft is 7mm in diameter with two sides flattened (the “D” output is not meant to be used).

Specifications:

Documents:

Warranty:

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Pololu 181 / 183 / 188 / 180 / 182 / 187 Solarbotics 224:1 / 120:1 / 143:1 Gear Motor 90 deg. / Offset Output

Motor Specifications
Speed (RPM)	at 6V: 181-46rpm, 183-146rpm, 188-78rpm, 180-46rpm, 182-157rpm, 187-78rpm, at 3V: 181-24rpm, 183-75rpm, 188-40rpm, 180-24rpm, 182-64rpm, 187-40rpm
Torque	at 6V: 181-57 oz·in, 183-24 oz·in, 188-76 oz-in, 180-57 oz-in, 182-21.1 oz-in, 187-76 oz-in, at 3V: 181-49 oz·in, 183-14 oz·in, 188-44 oz-in, 180-49 oz-in, 182-13.5 oz-in, 187-44 oz-in
Gear Ratio	181/180-224:1, 183/182-120:1, 188/187-143:1
Physical Attributes
Weight	181-31g, 183-19g, 188-33g, 180/187-32g, 182-18g
Dimensions	181-69.4 × 22.2 × 18.6 mm, 183-54.4 × 24.8 × 13.7 mm, 188-70.0 × 22.4 × 21.0 mm, 180-48.2 × 44.8 × 22.7 mm, 182-36.5 × 27.5 × 25.0 mm, 187-48.2 × 46.9 × 22.7 mm
Additional Information
Warranty

Pololu 181 / 183 / 188 / 180 / 182 / 187 Solarbotics 224:1 / 120:1 / 143:1 Gear Motor 90 deg. / Offset Output

Brand: Pololu
Product Code:Pololu-Solarbotics-Motor
Reward Points:6
Availability:In Stock

रo 605.00
Price in reward points:605
25 or more रo 600.00
47 or more रo 595.00
118 or more रo 590.00
235 or more रo 585.00

Available Options

Motor Type

6) I Shape

7) L Shape

Gear Ratio

37) 120:1

38) 224:1

39) 143:1

Qty

0 reviews / Write a review

Tags: Pololu, Solarbotics, Gear Motor, Output
