The industrial-grade Torxis high-torque servos by GearWurx (formerly know as Invenscience) are available in two different gear ratios that let you select for higher power or higher speed:
  • The i00600 Torxis :

The i00600 Torxis is an ultra-high-torque servo that can deliver a continuous duty torque of up to 1600 oz-in (115 kg-cm) at 12 V. This monster servo is controlled via the standard radio-controlled hobby servo interface and can travel 90 degrees in 1.5 seconds. The Torxis servo’s strength makes it suitable for applications that are too demanding even for giant-scale servos, and its 0.125"-thick mounting flange and aluminum main housing make it rugged enough for the rigors of a factory environment.

  • The i00800 Torxis :

The i00800 Torxis is an ultra-high-torque servo that can deliver a continuous duty torque of up to 800 oz-in (57 kg-cm) at 12 V. This monster servo is controlled via the standard radio-controlled hobby servo interface and can travel 90 degrees in 0.75 seconds. The Torxis servo’s strength makes it suitable for applications that are too demanding even for giant-scale servos, and its 0.125"-thick mounting flange and aluminum main housing make it rugged enough for the rigors of a factory environment.

The servo is powered by 12 volts DC and draws approximately 3 A at full load. All of its gears are metal for increased durability, and the 3/8" hardened output shaft is supported by two ball bearings. It is pre-configured for a 90 degree range of motion, but this can be increased by reconfiguring the embedded controller (see the Bonus Feature section below for more information). The Torxis is controlled by the standard radio-controlled (RC) hobby servo signal used by most RC receivers and servo controllers.

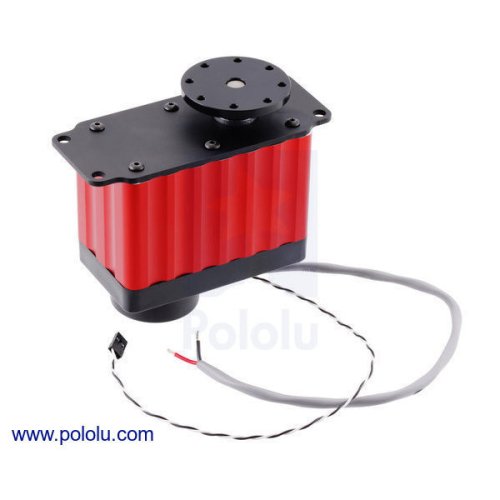

The servo includes a pre-mounted metal horn as shown in the pictures; the horn has eight 10-32 threaded mounting holes. (No mounting hardware is included.)

The Torxis control signal lead is terminated with a standard “JR”-style connector, which consists of two wires: ground (black) and RC PWM signal (white). Power is connected via the Torxis’ two separate, heavier-gauge wires.

Applications :
The Torxis servo’s power makes it suitable for ultra-high-torque applications that previously required custom feedback control systems including:
  • Unmanned ground vehicle controls
  • Factory automation and valve actuation
  • Heating ventilation and air conditioning airflow controllers
  • Solar panel sun tracking
  • Opening and closing gates and windows
Bonus feature: there’s a Jrk inside!

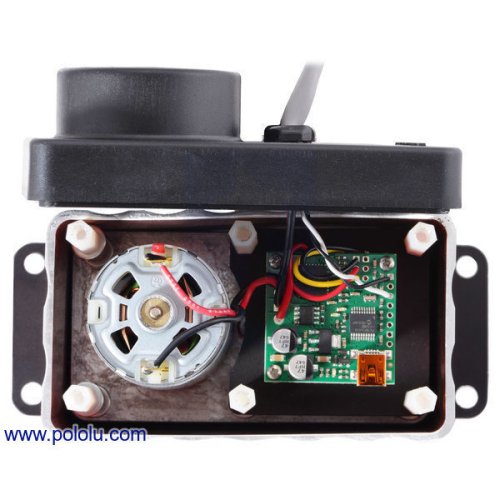

The Torxis servo is controlled by an embedded Jrk 21v3, a highly-customizable USB motor controller that also offers serial, analog, and USB interfaces. Using the free Jrk Configuration Utility, parameters including range, response curves, speed or current limits, and much more can be customized for your application. The Jrk enables the Torxis servo to function as a USB-controlled servo while allowing the host computer to monitor and graph position, current, and other parameters in real time. For more information about these features, please see the Jrk 21v3 user’s guide.

Documents:

Package Includes :

  • 1 x Pololu 1390 / 1391 Torxis Servo
Motor Specifications
Torque At 12V 1390-3200 oz-in, 1391-1600 oz·in, At 6V 1390-1600 oz·in, 1391-1600 oz·in
Physical Attributes
Weight 2.2 lb
Dimensions 5.50" x 2.40" x 4.66"
Additional Information
Warranty

Write a review

Please login or register to review

Pololu 1390 / 1391 i00600 / i0080 Torxis Servo

  • Brand: Pololu
  • Product Code:Pololu-1390-1391-Torxis-Servo
  • Reward Points:363
  • Availability:Back-order
  • रo 35,737.00

  • Price in reward points:36318

  • 2 or more रo 35,447.00
  • 4 or more रo 35,156.00
