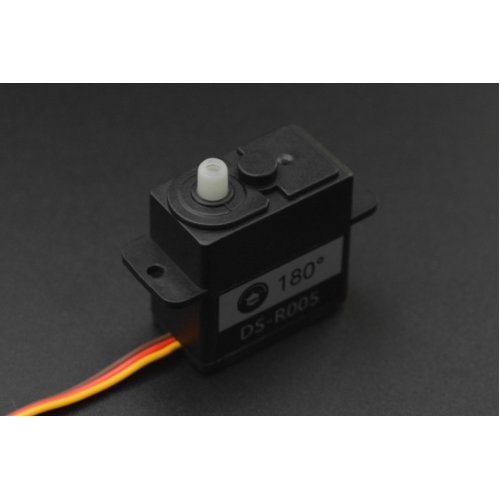

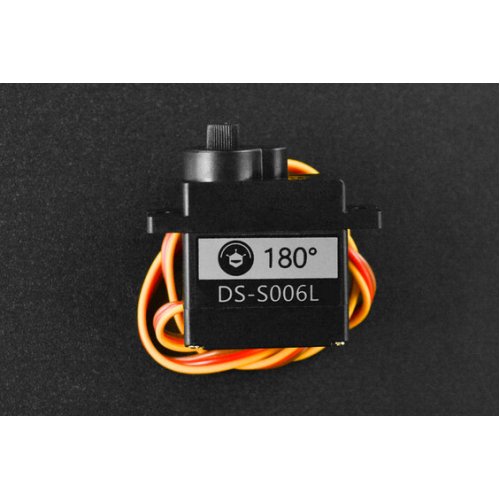

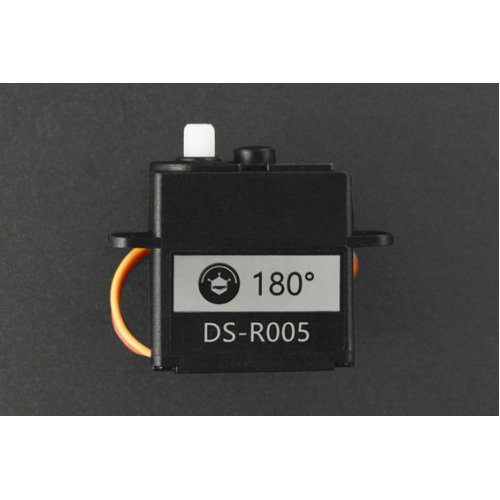

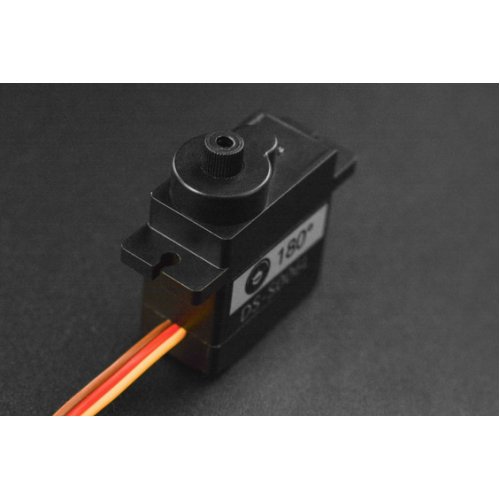

This servo features large torque, stable performance, accurate running angle and easy to install. The operating voltage is 4.8~6V. When the servo is powered at 6V, its stall torque will exceed 1.2Kg. There are no limited switches inside the servo so it can rotate smoothly in 360 degrees (manually only). Meanwhile, the servo could operate fluently with minimal power, and you can just supply power to it by normal battery or USB. In addition, users can directly control the servo using servo libraries in Arduino IDE and let it reach a maximum 180 degrees rotation angle within the pulse range of 500-2500μsec.

Clutch Function:

When the angle of a servo is changed by external forces during normal operation, the servo can automatically reset and continue working through clutch function, which prevents it from being damaged.

Electronic Protection:

After being blocked for 5 seconds, the servo will automatically turn off its power to avoid getting burned.

Specifications:

Operating Voltage: 4.8-6V DC
Static Current: ≤8mA at 6.0V
No-load Current: ≤110mA at 4.8V ≤120mA at6.0V
Stall Current: ≤700mA at 4.8V ≤800mA at 6.0V
Rated Torque: ≥0.45kgf·cm at 4.8V ≥0.55kgf·cm at 6.0V
Stall Torque: ≥1.6kgf·cm at4.8V ≥2.0kgf·cm at6.0V
Operating Angle: 180°±10°
Communication Mode: PWM
Pulse Width Range: 500~2500μs

Package Includes:

1 x Clutch Servo

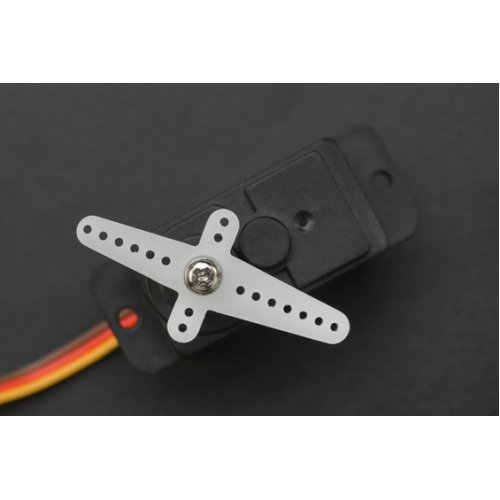

1 x Servo Plate & Accessories set

Clutch Servo

Brand: DFRobot
Product Code:DFR-Clutch-Servo
