- Original CP2102 chip to generate COM port after installing the driver.
- MICRO MINI-USB connection standard input connected to a computer USB interface cable with two power 3.3V and 5V voltage output
- With a resettable fuse. In the event of accidental short, can effectively protect your downloads and computer USB port
- Onboard status indicator lights transceiver, properly installed rear drive status indicator lit, receiving indicator flashes when communicating with LED running lights.
- Supports baud rates from 300bps ~ 1Mbps between
- USB Block MICRO MINI-USB interface for seat
- SMD components for the regular company of welding, stable quality, beautiful appearance
- With DTR trigger signal output can be directly pro mini ATMEGA328P board download programs and other communication
- Embedded USB transceiver, without external circuit device
- Containing clock circuit, no external circuitry is
- Contains power-on reset circuit
- On-chip voltage regulator output voltage 3.3V
- In line with USB2.0 specification requirements
- SUSPEND pin supports USB Suspend state
- Asynchronous serial data bus compatible with all handshakes and modulation controller interface signals
- Supported data formats for 8 data bits, 1 stop bit and parity bits
- Connotation 512 byte receive buffer and 512 byte transmit buffer
- Support for hardware or X-ON / X-OFF handshake

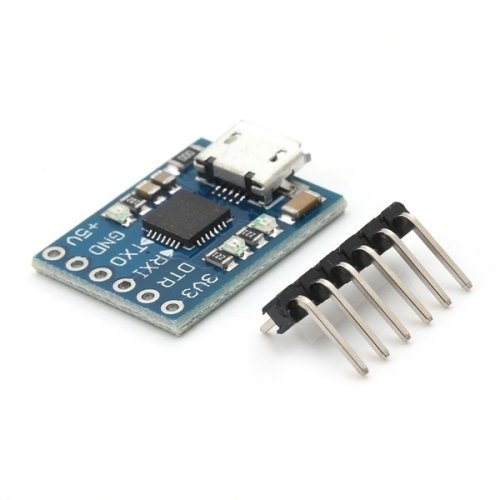

CP2102 MicroUSB to TTL Converter - 6 Pins
- Product Code:PRC-CP2102-MicroUSB-TTL-Conv-6Pin
- Reward Points:2
- Availability:Out Of Stock
-
रo 130.00
- Price in reward points:155
