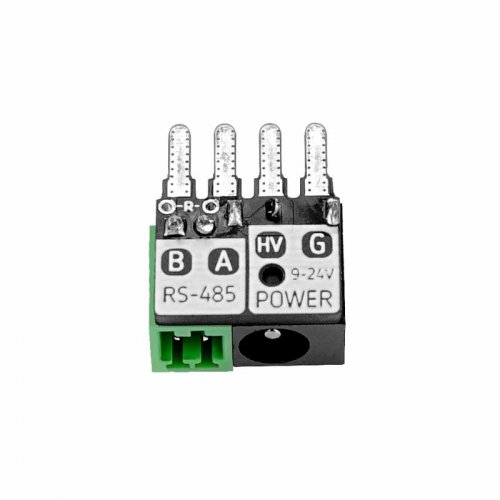

BAVG2Socket is a transfer line terminal suitable for RS485 line construction. The conversion head integrates the 2.54-2P terminal and the DC power input interface into a 3.96-4P specification terminal. It is convenient to access the equipment using 3.96-4P interface in the M5 hardware system. The equipped DC power interface can facilitate users to use commonly used DC adapters as power input.
Features:
- DC power interface
- RS485 transfer terminal
Specifications:
- DC input Voltage: 9-24V, Model: DC-IN-TH_DC-0440-2.5A-2.0
- Net weight: 6.7g
- Gross weight: 10.7g

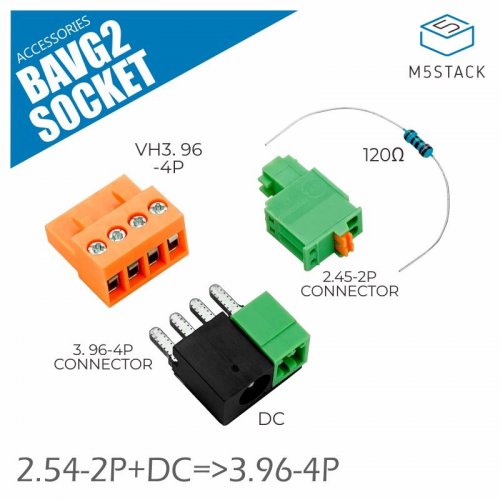

- Terminal specifications: 2.54-2P+DC-0440 to 3.96-4P
- Product Size: 17x30x10mm

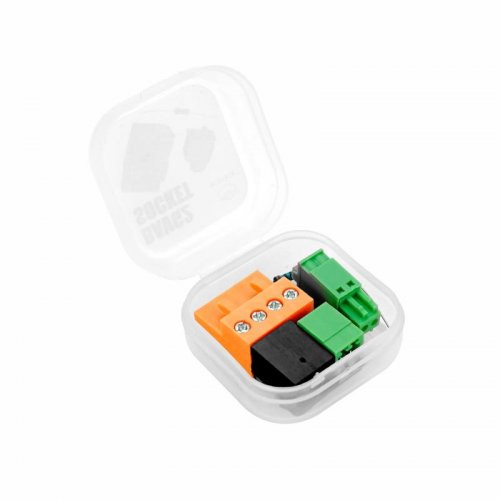

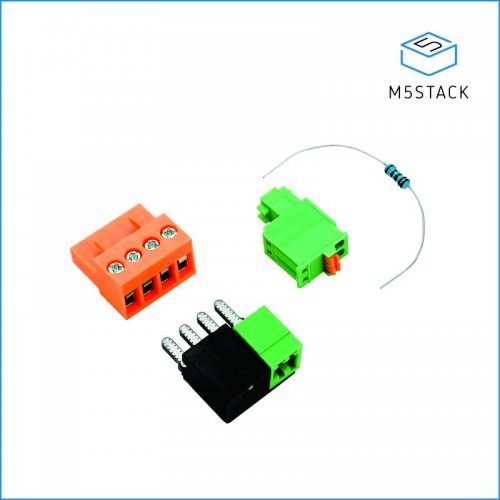

Package Includes:
- 1 x 120Ω plug-in resistor
- 1 x 2.54-2P connection terminal
- 1 x 3.96-4P connection terminal
M5Stack BAVG2 Socket
- Brand: M5Stack
- Product Code:M5S-BAVG2-Socket
- Reward Points:3
- Availability:Order now and get it in 20 days
-
रo 372.00
- Price in reward points:372
