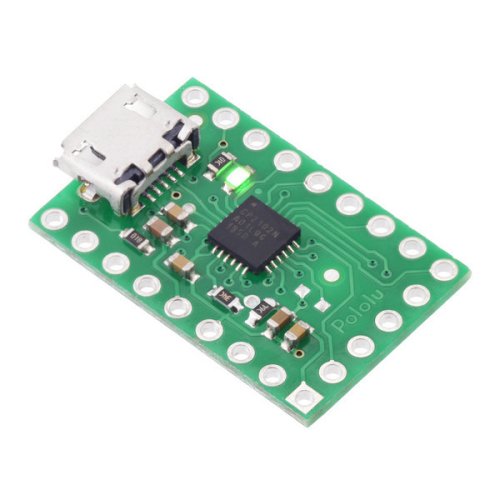

This USB-to-serial adapter is a breakout board for the Silicon Labs CP2102N USBXpress USB-to-UART bridge, and it is a great solution for connecting microcontroller projects and other logic-level serial devices to a personal computer. The tiny unit measures only 0.6″ × 0.95″ including its Micro-USB connector. It offers several options for accessing the data, control, and GPIO pins on the CP2102N, all of which are made available on a 0.1″ spacing. This board uses 3.3 V signal levels by default, but the signal pins can tolerate higher voltages, allowing the adapter to be used with 5 V systems that see 3.3 V as a logic high.
The adapter looks like a standard virtual serial port (COM port) to the computer’s operating system, which means it can be used with any software designed to work with a serial port (even a legacy RS-232 port).

Specifications:

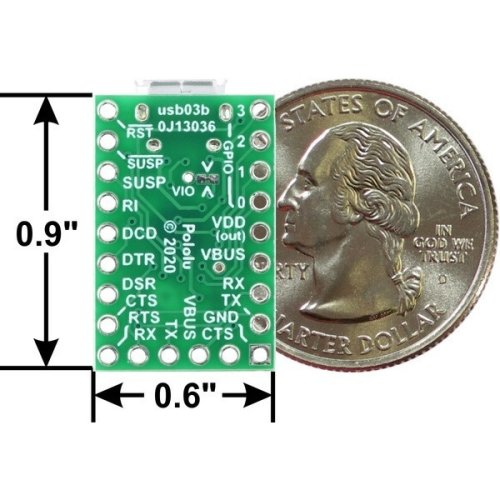

  • Dimensions: 0.6″ × 0.95″ including connector
  • USB standard: USB 2.0 (full speed)
  • Connector: USB Micro-B
  • Logic voltage level: 3.3 V (5 V tolerant)
  • Supported baud rates: 300 bps to 3 Mbps
  • Supply current: 15 mA
Documents:
Package Includes:

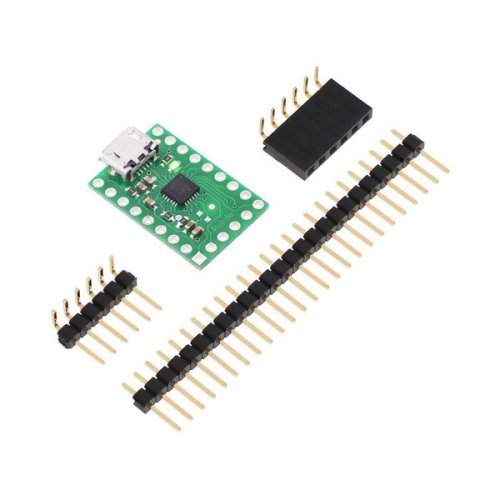

  • 1 x CP2102N USB-to-Serial Adapter Carrier

Write a review

Please login or register to review

Pololu 1317 CP2102N USB-to-Serial Adapter Carrier

  • Brand: Pololu
  • Product Code:Pololu-1317-CP2102N
  • Reward Points:8
  • Availability:In Stock
  • रo 857.00

  • Price in reward points:857

  • 5 or more रo 814.00
  • 15 or more रo 808.00
  • 35 or more रo 801.00
  • 85 or more रo 794.00
  • 175 or more रo 788.00
