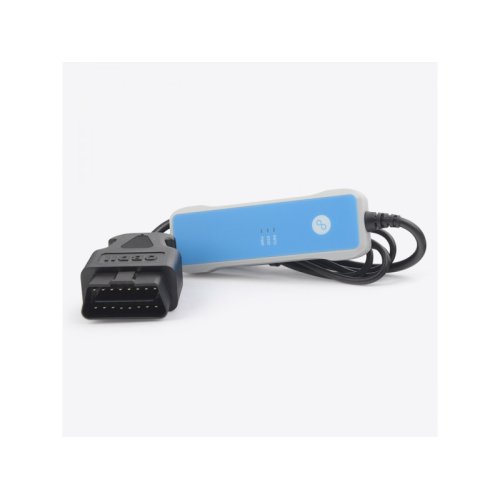

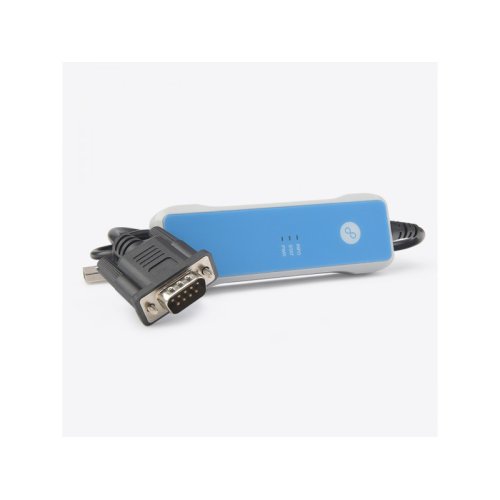

The new Korlan USB2CAN converter from 8devices sets a new quality, performance and price standards in the market. It is available with two different connectors: DB9 or OBD2 and both models have galvanic isolation. Korlan offers loss-less and extremely accurate communication at a price points not available before. With USB2CAN you can monitor a CAN network, write a CAN program and communicate with industrial, medical, automotive or another type of CAN bus network devices. The USB2CAN adapter connects a CAN bus to the USB port of a PC or notebook, which also supplies the power to the adapter. Korlan USB2CAN comes with a 2 year worldwide warranty.

Specifications:

  • CPU : ARM 32bit Cortex-M0 (STM32F072)
  • Electrical isolation : Galvanic isolation 2.5kV
  • Power source : USB
  • Interface speed : USB 2.0 Full speed (12 Mbps)
  • CAN specifications compliance : 2.0A (11-bit ID) and 2.0B (29-bit ID)
  • CAN bus baud rate : 20-2000 Kbit/s user definable speed
  • Firmware upgrade : Via bootloader, USB DFU protocol
  • Simultaneous use quantity : Up to 4 USB2CAN converters can be connected for simultaneous use on a single PC
  • CAN bus interface connector : SUB-DB9/ OBD2/ (option to add different connector)
  • LED status indications : Power, Error, Info
  • Available drivers : Drivers for Windows XP, Windows Vista, Windows 7, Windows 10, Linux (SocketCAN)
  • Supported library : Open source CANAL API DLL for Windows
  • 3rd party protocol support : Open source CANAL API DLL for Windows
  • Testing modes : Silent and loopback

Documents:

LINUX Drivers And Tools:

Package Includes:

  • 1 x 8devices Korlan USB2CAN Adapter

Write a review

Please login or register to review

8devices Korlan USB2CAN Adapter

  • Brand: 8devices
  • Product Code:8d-Korlan
  • Reward Points:100
  • Availability:In Stock
  • रo 9,998.00

  • Price in reward points:9998

  • 2 or more रo 9,918.00
  • 3 or more रo 9,838.00
  • 7 or more रo 9,758.00
  • 15 or more रo 9,678.00
