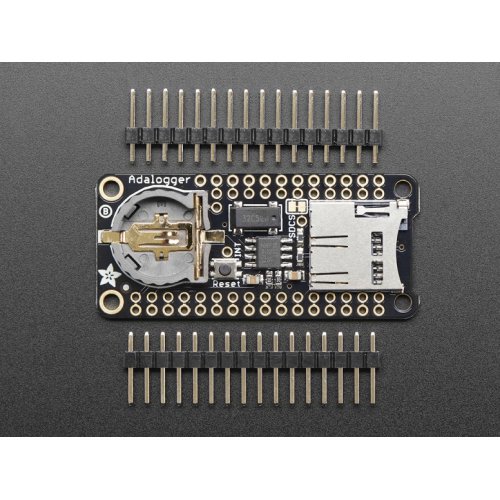

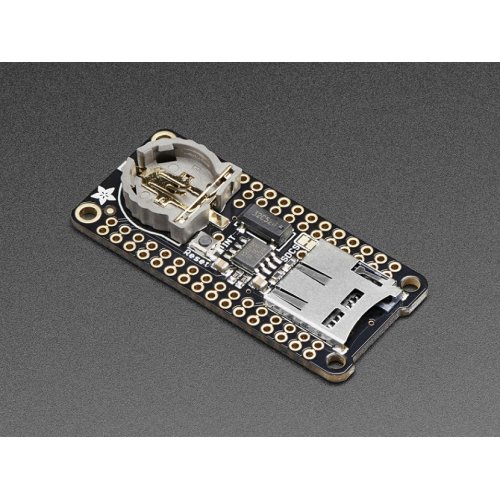

A Feather board without ambition is a Feather board without FeatherWings! This is the Adalogger FeatherWing: it adds both a battery-backed Real Time Clock and micro SD card storage to any Feather main board. Using Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top of your Feather board and let the board take flight!
This FeatherWing will make it real easy to add datalogging to any of our existing Feathers. You get both an I2C real time clock (PCF8523) with 32KHz crystal and battery backup, and a microSD socket that connects to the SPI port pins (+ extra pin for CS). Tested and works great with all of our Feathers.
Does not come with a micro SD card. A CR1220 coin cell is required to use the RTC battery-backup capabilities.
TECHNICAL DETAILS
- 50.8mm x 22.9mm x 1.6mm / 2" x 0.9" x 0.06"
- Weight: 5.1g
Adafruit 2922 Adalogger FeatherWing RTC+SD Add-on For All Feather Boards
- Brand: Adafruit
- Product Code:Ada-Adalogger-FeatherWing
- Reward Points:10
- Availability:In Stock
-
रo 966.00
- Price in reward points:1019
-
- 50 or more रo 846.00
- 160 or more रo 842.00
