UP Xtreme i11 has a M.2 3052 slot to support 5G modules to enable ultra-low latency and reliable transmission of data to/from masses of IoT devices, which ensures the convergence of 5G, AI, Cloud Computing, Data Analytics, and IIOT.

Combined with Intel AI Accelerator and Intel Distribution of OpenVINO toolkit, it accelerates Computer Vision (CV) and Deep Learning Inference from Edge to Cloud. It also offers pre-trained models, and pre-optimized kernels to increase performance for AI.

Powerful: The latest 11th Gen Intel Core processor with Intel Iris Xe graphic

Fast: NVMe, USB 3.2, USB 4.0 Type C

Expandable: 40-pin I/O expansion, M.2 2230 E key, M.2 2280  M key, M.2 3052 B Key, PCIe [x4] to allow for seamless integration.

Ready to connect: Ready to connect 5G, WiFi ( WiFi 5/WiFi 6), Bluetooth

Specifications:

• SoC: Intel Celeron 6305E ( up to 2.0 GHz)
• Graphics: Intel UHD Graphics for 11th Gen Intel Processors
• VPU: optional (via M.2 2280)
• FPGA: Intel FPGA Altera Max V
• MCU: N/A
• memory: via 2x SO-DIMM DDR4
• eMMC/Storage: via SATA or M.2 2280 NVMe
• BIOS: UEFI
• RTC: Yes
• WAKE ON LAN (WoL): Yes
• Watchdog timer: Yes
• PXE: Yes
• Compatible OS: Microsoft Windows 10 full version, Yocto project 3.1 Kernel 5.4 Ubuntu 20.04 Kernel 5.4
• Pre-installed OS: Optional Windows 10
• Power requirement: 12V DC-IN (lockable connector)
• Power Supply Type: AT (default) /ATX
• Power Consumption ( typical): 60 Watt
• Dimension: 120 mm x 122mm
• Operation temperature: 32°F ~ 140°F (0°C ~ 60°C)
• Storage temperature: -40°F ~ 176°F (-40°C ~ 80°C)
• Operation Humidity: 0% ~ 90% relative humidity, non-condensing
• Display
• HDMI: 1 (HDMI 2.0)
• Display Port: 1x DP 1.4+ 1x USB Type C ( 1x DP 1.4/ USB4.0)
• MIPI DSI/ eDP: 1 x eDP (4K@60hz)
• I/O
• Audio: Line in/Out (3.5 mm audio jack)
• USB 2.0 type A: 1
• USB 3.2 (Type A): 3
• USB 4.0 Type C: 1
• UART: 1 x HSUART (pin header)
• Serial port: 2x RS232/422/485
• HDD interface: 1 x SATA 3.0
• Expansion Slot: 1x M.2 2280 M key ( support NVME SSD) ,1x M.2 2230 E key ,1x M.2 3052 B Key (USB3.0 interface) with Micro SIM, 1x PCI-e[x4] ( adapter board accessory required)
• AIO/DIO: via GP-bus
• 40-pin GP-Bus: 1
• 100-pin GP Bus: N/A
• MIPI-CSI: N/A
• SIM slot: Yes
• Others: TPM 2.0 on board
• Connectivity:
• Ethernet: 1 x 1GbLAN (i219), 1x 2.5Gb LAN (i225), vPRO is only available in i7/i5 CPU
• WiFi: optional ( via. M.2 2230 )
• Bluetooth: optional ( via. M.2 2230 )
• LTE/4G/5G: optional ( via. M.2 3052 )
• Cooling: active cooling
• Longevity: 2035

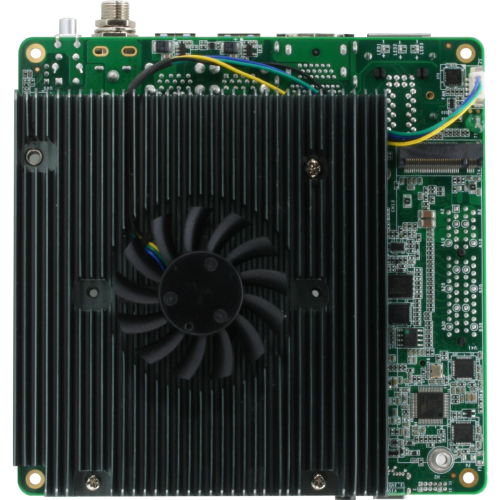

• Accessories: 1x RTC battery 1x active heatsink
• Others:
• 4 LEDs YRGB (under ethernet port), 1x power button, 1x reset button
• Package:
• Net weight: 295.2 gram
• Package dimension (L x W x H): 229x181x97mm

Note:

• Please note that ADC is currently not working due to kernel regression (future kernel releases will fix the issue).
• Please note that the latest NVM for i225 IT Ethernet controller is not working in Ubuntu Linux. Please refer here for more info.
• SODIMM RAM(max. 64GB)needs to be purchased separately and installed.
• Storage options(SATA 3.0 Disk or NVMe Disk)needs to be purchased separately and installed

Documents:

• Datasheet
• Wiki

Package Includes:

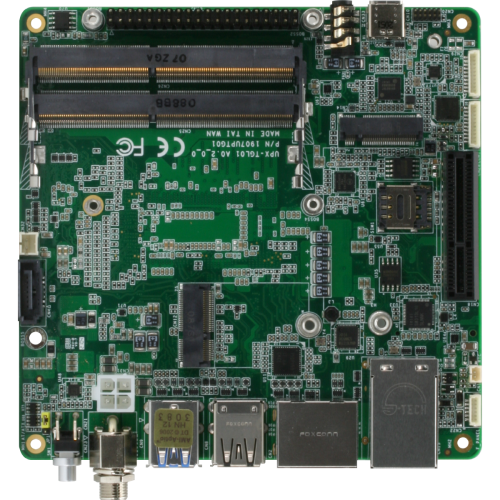

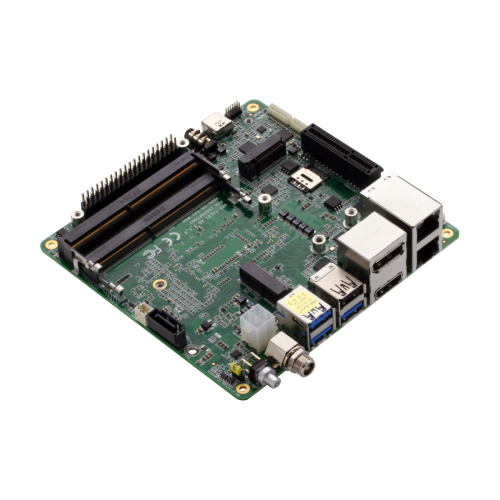

• 1 x UP Xtreme i11 Board Celeron
