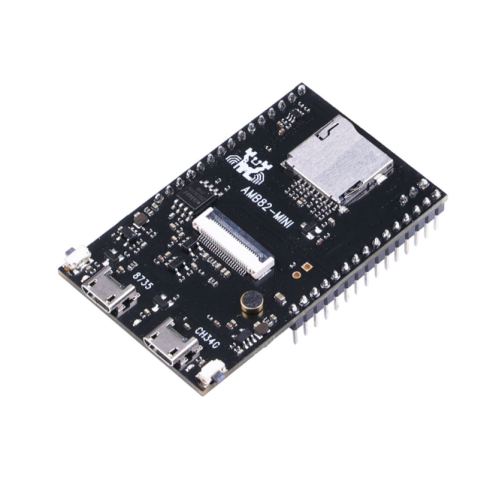

The AMB82-MINI development board is adopting Realtek RTL8735BDM SoC, it is suitable for battery-powered appliances or equipment requiring AI network camera applications, with no worry about power consumption and IoT security. AMB82-MINI is easy to program and learn AI models with this powerful AIoT development kit.

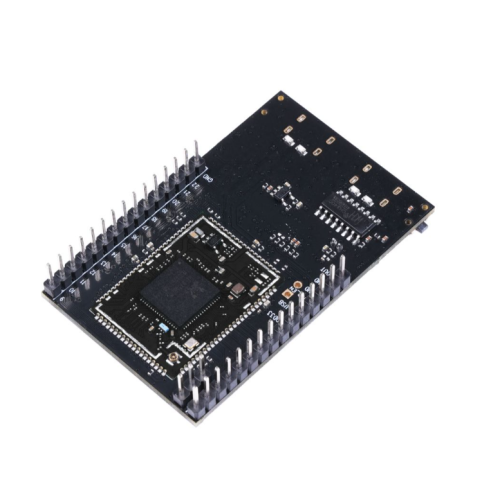

The AMB82-MINI development board is adopting Realtek RTL8735BDM SoC. RTL8735BDM is a highly integrated low-power 802.11 a/b/g/n WLAN and Bluetooth camera SoC, it combines arm® v8M MCU(500MHz and 2.23 DMIPS/MHz), DualBand Wi-Fi, Bluetooth BLE5, audio codec, ISP and H264/H265 encoder, DDR2 128MB memory, and neural network intelligent engine in a single chip. It also provides useful high-speed connectivity interfaces, such as a USB 2.0 host, USB 2.0 device, SD host, and a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.

Thanks to the RTL8735BDM single chip, the AMB82-MINI development board is suitable for battery-powered appliances or AI network camera applications, with no worry about power consumption and IoT security. Features very fast boot-up in milliseconds and ultra-low power consumption in microampere. Embedded security architecture with trustzone/security mechanism, moreover, dual-band Wi-Fi can provide better wireless performance for high-quality H264/H265 video streaming.

It’s not just for makers to design a wireless network camera, the more ideas can be utilized by RTL8735B internal NN engine to deploy edge AI devices, interesting intelligent equipment, object detection, audio recognition, facial recognition, AI models by Yolov4-Tiny, Tesnsorflow-Lite..etc.

Features:

• Worldwide leading Ultra-Low-Power AI Wi-Fi IP Camera SoC：8-in-1 SoC featuring embedded AI & NPU, High resolution up to 2K
• Fast boot-up in milliseconds; ultra-low power in microampere
• Supporting battery-powered, AI & IoT Ecosystems
• Multiple streams real-time H.265/H.264/JPEG encoding
• SDK supports free RTOS, IAR, GCC, Arduino IDE

Specifications:

Parameter: Detail

MCU: ARMv8M up to 500MHz

NPU:Intelligent Engine @ 0.4 TOPS

Memory:internal DDR2 128MB on SoC and 16MB external SPI Nor flash on Dev. Board

Wi-Fi:802.11 a/b/g/n 1x1, Dualband 2.4GHz/5GHz Wi-Fi

          Wi-Fi simple config

Bluetooth:BLE 5.1

Security: Hardware cryptographic engine

               Secure boot (optional)

               Trust-Zone (optional)

               Wi-Fi WEP, WPA, WPA2, WPA3, WPS

Audio Codec :ADC/DAC/I2S

ISP/Video :HDR / 3DNR / WDR ; H264/H265/JPEG video encoder 1080p@30fps +720p@30fps

Camera module: JXF37 1920x1080 full HD CMOS image sensor with wide view angel FOV 130° optical lens

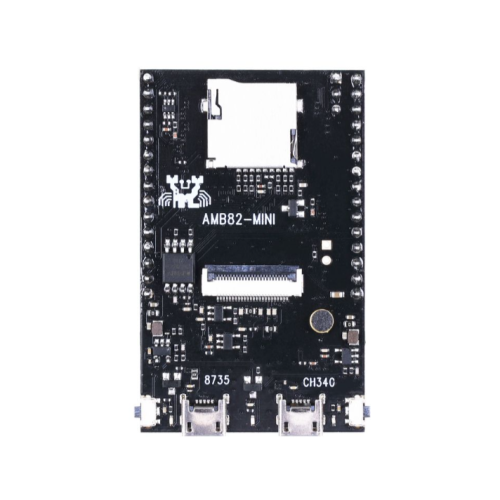

Interface :1 Microphone on Dev Board, 2 Micro USB_B, 1 MicroSD card slot, 2 tact switch button

                    3 UART

                     2 SPI

                     1 I2C

                    8 PWM

                    2 GDMA

                    Max. 23 GPIOs

Applications:

• AIoT
• AI camera
• Battery camera
• Security camera
• Smart home
• Industrial applications

Hardware Overview:

ECCN/HTS

• HSCODE  8543709990
• USHSCODE 8543708800
• UPC
• EUHSCODE 8543709099
• COO CHINA

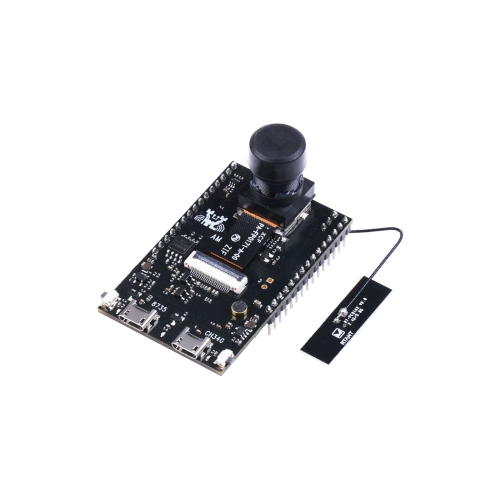

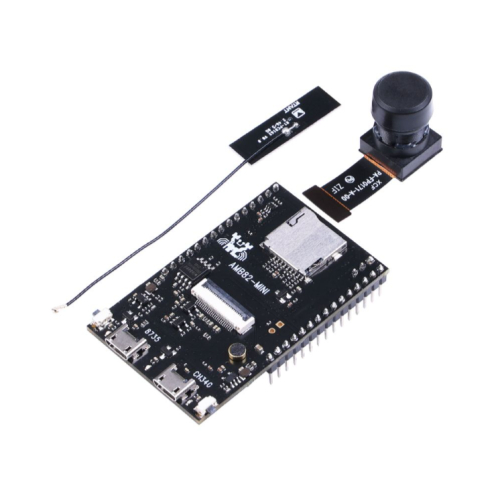

Package Includes:

• 1 x Realtek AMB82-MINI Dev. Board
• 1 x Dualband Wi-Fi (2.4GHz/5GHz) ipex antenna

• 1 x Taiyee camera module(F37)
