The Tic T825 USB Multi-Interface Stepper Motor Controller makes basic control of a stepper motor easy, with quick configuration over USB using our free software. The controller supports six control interfaces: USB, TTL serial, I²C, analog voltage (potentiometer), quadrature encoder, and hobby radio control (RC). This version incorporates a TI DRV8825 driver and male headers and terminal blocks are included soldered/ Unsoldered. It can operate from 8.5 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (or 2.5 A max with sufficient additional cooling).

The table below lists the members of the Tic family and shows the key differences among them.



  Tic T500


Tic T834

Tic T825

Tic T249

Operating voltage range: 4.5 V to 35 V(1) 2.5 V to 10.8 V 8.5 V to 45 V(1) 10 V to 47 V(1)
Max continuous current per phase
(no additional cooling):
1.5 A 1.5 A 1.5 A 1.8 A
Peak current per phase
(additional cooling required):
2.5 A 2 A 2.5 A 4.5 A
Microstep resolutions: full
half
1/4
1/8
full
half
1/4
1/8
1/16
1/32
full
half
1/4
1/8
1/16
1/32
full
half
1/4
1/8
1/16
1/32
Automatic decay selection: Yes     Yes
Automatic gain control (AGC):       Yes
Driver IC: MP6500 DRV8834 DRV8825 TB67S249FTG
Price (connectors not soldered): $19.95 $29.95 $29.95 $39.95
Price (connectors soldered): $21.95 $31.95 $31.95 $41.95

The Tic T825 USB Multi-Interface Stepper Motor Controller is a versatile, general-purpose controller designed to control one bipolar stepper motor. With a variety of supported interfaces–USB for direct connection to a computer, TTL serial and I²C for use with a microcontroller, RC hobby servo pulses for use in an RC system, analog voltages for use with a potentiometer or analog joystick, and quadrature encoder for use with a rotary encoder dial–and a wide array of configurable settings, the Tic T825 makes it easy to add basic control of a bipolar stepper motor to a variety of projects. A free configuration utility (for Windows, Linux, and macOS) simplifies initial setup of the device and allows for in-system testing and monitoring of the controller via





The Tic T825 is based on the DRV8825 IC from Texas Instruments. It can operate from 8.5 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (absolute maximum is 2.5 A per phase). It has reverse protection for motor power supplies up to 40 V. This version is sold unassembled so soldering is necessary to use it.

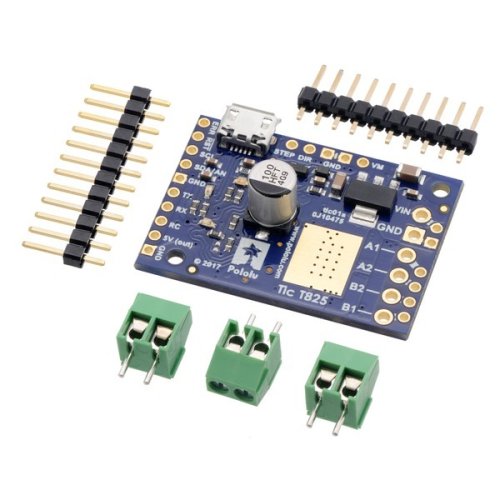

Tic T825 USB Multi-Interface Stepper Motor Controller (without connectors soldered) with included headers and terminal blocks.

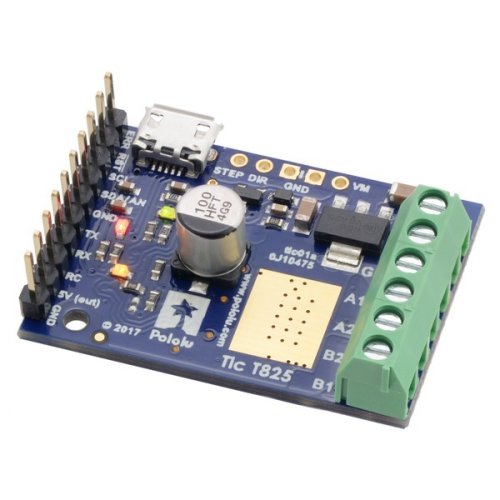

Tic T825 USB Multi-Interface Stepper Motor Controller (top view).

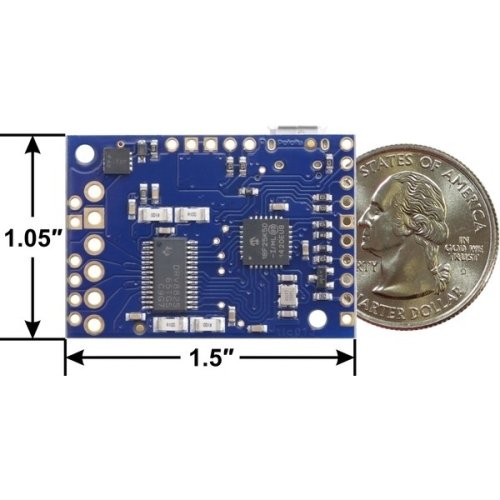

Tic T825 USB Multi-Interface Stepper Motor Controller (bottom view).



Features and specifications

  • Open-loop speed or position control of one bipolar stepper motor
  • A variety of control interfaces:
    • USB for direct connection to a computer
    • TTL serial operating at 5 V for use with a microcontroller
    • I²C for use with a microcontroller
    • RC hobby servo pulses for use in an RC system
    • Analog voltage for use with a potentiometer or analog joystick
    • Quadrature encoder input for use with a rotary encoder dial, allowing full rotation without limits (not for position feedback)
    • STEP/DIR inputs for compatibility with existing stepper motor control firmware
  • Acceleration and deceleration limiting
  • Maximum stepper speed: 50,000 steps per second
  • Very slow speeds down to 1 step every 200 seconds (or 1 step every 1428 seconds with reduced resolution).
  • Six different microstep resolutions: full step, half step, 1/4 step, 1/8 step, 1/16 step, and 1/32 step
  • Digitally adjustable current limit
  • Optional safety controls to avoid unexpectedly powering the motor
  • Input calibration (learning) and adjustable scaling degree for analog and RC signals
  • 5 V regulator (no external logic voltage supply needed)
  • Optional kill switch inputs
  • Connects to a computer through USB via a USB A to Micro-B cable (not included)
  • Free configuration software available for Windows, Linux, and macOS
  • Comprehensive user’s guide

Dimensions

Size: 1.50″ × 1.05″ × 0.42″1
Weight: 5.1 g1

General specifications

Motor driver: DRV8825
Control interface: USB; non-inverted TTL serial; I²C;
RC servo pulses; analog voltage; quadrature encoder
Minimum operating voltage: 8.5 V
Maximum operating voltage: 45 V2
Continuous current per phase: 1.5 A3
Maximum current per phase: 2.5 A4
Maximum step rate: 50000 PPS
Microstep resolutions: full, 1/2, 1/4, 1/8, 1/16, and 1/32
Reverse voltage protection?: Y5
Header pins soldered: N

Identifying markings

PCB dev codes: tic01a
Other PCB markings: 0J10475

Specs:here


Resources:here

Faqs:here

Package Contains:
  • 1 x Tic T825 USB Multi-Interface Stepper Motor Controller
  • 1 x  Included headers and terminal blocks

Write a review

Please login or register to review

Pololu 3130 / 3131 Tic T825 USB Multi-Interface Stepper Motor Controller

  • Brand: Pololu
  • Product Code:Pololu-3130-31-Stepper-Motor-Controller
  • Reward Points:66
  • Availability:In Stock
  • रo 6,612.00

  • Price in reward points:6612

  • 2 or more रo 6,559.00
  • 4 or more रo 6,506.00
  • 10 or more रo 6,453.00
  • 20 or more रo 6,400.00
