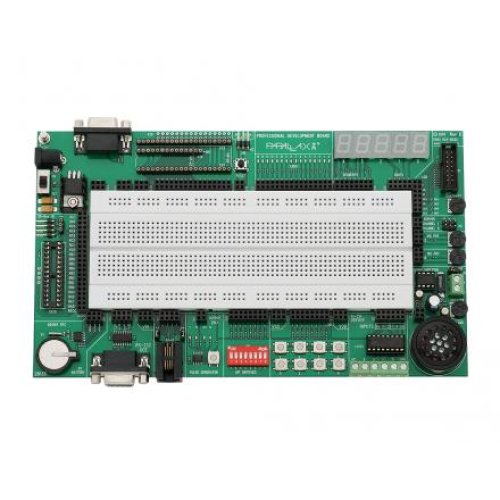

Our Professional Development Board (PDB) is a high-quality, fully-integrated development platform for BASIC Stamp and SX28AC/DP microcontrollers. A wide variety of typical I/O (LEDs, LCD interface, buttons, etc.) devices and circuitry are built into the PDB, providing the developer with an ideal platform for rapid microcontroller project development.

Features:

40-pin DIP socket (for all BASIC Stamp 24/40-pin and Javelin Stamp modules)
14-pin SIP socket (for BS1-IC)
28-pin “skinny” DIP socket (for SX28AC/DP)
2.1 mm, center-positive connector for DC power
16 discrete blue LEDs
Five blue 7-segment (with decimal point), common-cathode LED displays
Parallel LCD (available separately) may be configured in 4-bit or 8-bit mode
Two servo-compatible headers
Two 10KΩ potentiometers
Audio amplifier with built-in speaker; with switch for external speaker
L293D high-current driver for motors, solenoids, etc.
Eight, normally-open pushbuttons (I/O lines protected, and pulled-up to Vdd via 10KΩ)
Eight DIP switches (I/O lines protected, and pulled-up to Vdd via 10KΩ)
Pulse generator with selectable frequency (1 Hz, 10 Hz, 100 Hz, or 1 kHz)
RJ-11 connector; configurable for X-10 and 1-Wire® communications
RS-232 DCE port with MAX232E transceiver
DS1307 (I2C®) real-time-clock with 3v back-up battery (pre-installed)


Key Specifications:

Power Requirements: 6-12 VDC (1 A power supply recommended, 65 mA quiescent current)
Communication: RS-232 DB-9 female connector (#28031 required for USB connection, sold separately)
Dimensions: 9 x 5.25 x 1 in (227.5 x 132.5 x 25.4 mm)
Operating Temperature: +32 to +158 °F (0 to +70 °C)


Included In:

StampWorks Experiment Kit

ROHS Compliant, Made in the USA

Note: The Parallax USB to Serial Adapter, Serial Cable and power supply is not included with this product. We recommend 12V, 1A power supply for the Professional development Board to cover the widest range of potential uses.

Downloads & Resources:
Professional Development Board Documentation (.pdf)
Professional Development Board Schematic Rev D. (.pdf)
Power Supply Recommendation Chart
