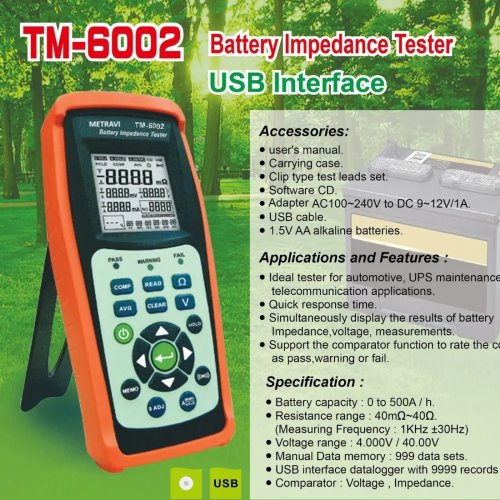

Battery Impedance Tester to check Battery internal resistance, Voltage, Current and temperature, with 9999 memory, with PC Interface cable and software.

Specifications:

• Measuring Internal Impedance and Open Circuit Voltage of the secondary battery including Nickel-metal hydride battery (NiMH), Nickel-Cadmium Battery (NiCd)

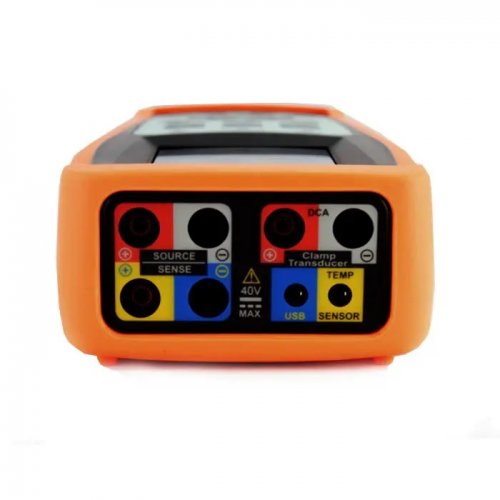

• AC Four terminal method to measure internal impedance by eliminating lead impedance and contact impedance to get the accurate results
• Multi display LCD to display internal impedance, voltage and clock
• 99Sets of composite comparator function
• Pin type leads, for easy contact of battery electrode.
• Large Backlit LCD Display
• Data Logging up to 9999 sets
• Resistance Measurement from 10uOhms to 40 Ohms
• Voltage Measurement from 1mV to 40V
• Temperature Measurement from -20 to 60°C
• DC Current Measurement from 0.6A to 700A DC

Documents:

• TM-6002


• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

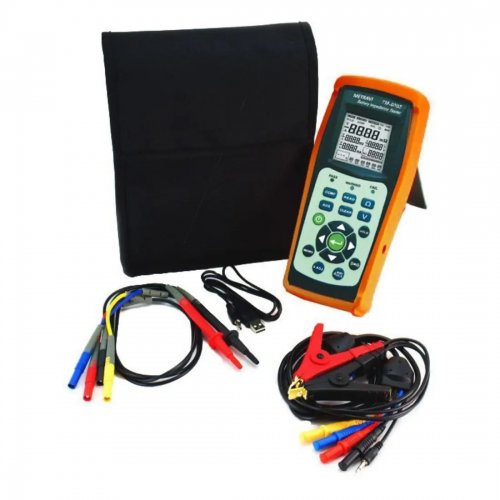

Package Includes:

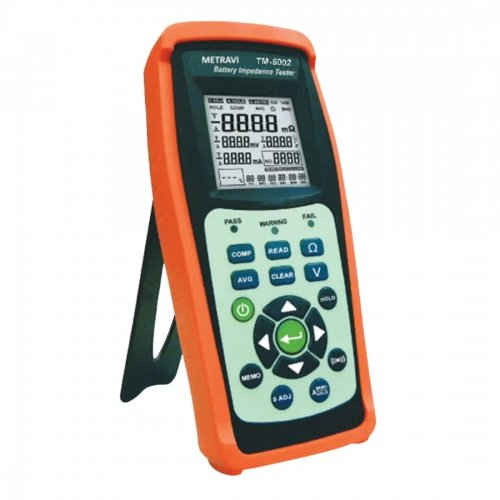

• 1 x Metravi TM-6002 Battery Impedance Tester
