• LED Display Module MAX 7219 Dot Matrix DIY Kit

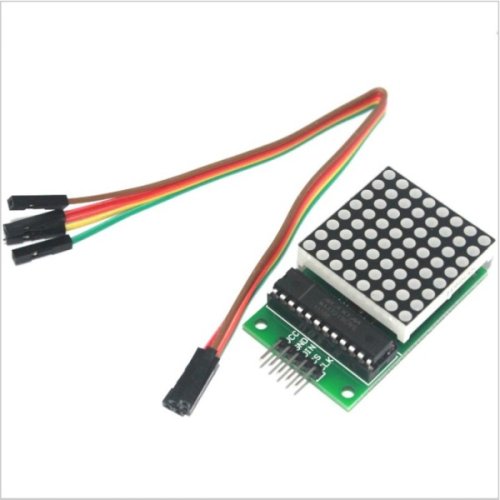

LED Display Module MAX 7219 Dot Matrix DIY Kit for Arduino

Features:
  • Model:MAX7219
  • Can drive an 8 x 8 common cathode lattice
  • Module with input and output interfaces, supports multiple modules cascade
  • The left of the module has an input port and the right an output port
  • The control of a single module, simply input port to the CPU
  • Multiple modules cascade input termination CPU, 2 output termination module, a module of the input of the input terminal, the output terminal of the first two modules of the first three modules, and so on
Specifications:
  • Operating voltage: 5V
  • With four screws hole(diameter: 3 mm)
  • For example 51 MCU:
  • VCC - 5V
  • GND - GND
  • DIN - P22
  • CS - P21
  • CLK - P20
  • Size of the borad: 5 x 3.2 cm
  • Net weight:17 g
  • Color:As shown in the pictures
Package Content:
  • 1 x Set of MAX7219 Dot matrix module MCU control Display module

Write a review

Please login or register to review

LED Display Module MAX 7219 Dot Matrix DIY Kit

  • Product Code:PRC-LED-DOT-Matrix-7219
  • Reward Points:3
  • Availability:In Stock
  • रo 341.00

  • Price in reward points:341
