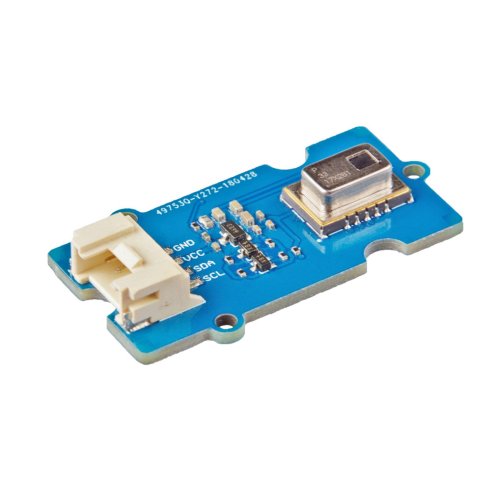

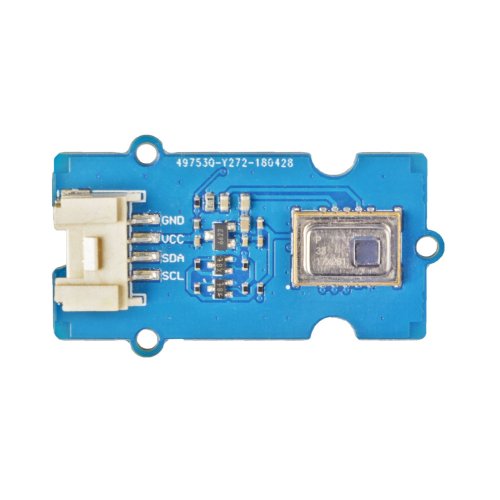

Grove - AMG8833 8x8 Infrared Thermal Temperature Sensor Array is a high precision infrared array sensor based on advanced MEMS technology.
This sensor can measure temperatures ranging from 0°C to 80°C (32°F to 176°F) and provide the accuracy of +- 2.5°C (4.5°F). It can support temperature detection of the two-dimensional area of 8 × 8 (64 pixels) and a maximum 7 meters detection distance.
Features:
- Temperature detection of the two-dimensional area: 8 × 8 (64 pixels)
- Temperature range of measuring object: 0 °C to 80 °C +32 °F to +176 °F
- I2C output (capability of temperature value output)
- High precision
- Long detection distance
Technical details:
| Dimensions | 40mm x20mm x6mm |
| Weight | G.W 10g |
| Battery | Exclude |
| Operating Voltage | 3.3V / 5V |
| Temperature range of measuring object | 0 °C to 80 °C +32 °F to +176 °F |
| Operating temperature range | 0 °C to 80 °C +32 °F to +176 °F |
| Storage temperature range | −20 °C to 80 °C –4 °F to +176 °F |
| Temperature accuracy | Typical ±2.5 °C ±4.5 °F |
| Viewing angle | Typical 60 ° |
| Optical axis gap | Within Typical ±5.6 ° |
| Number of pixel | 64 (Vertical 8 × Horizontal 8 Matrix) |
| External interface | I2C |

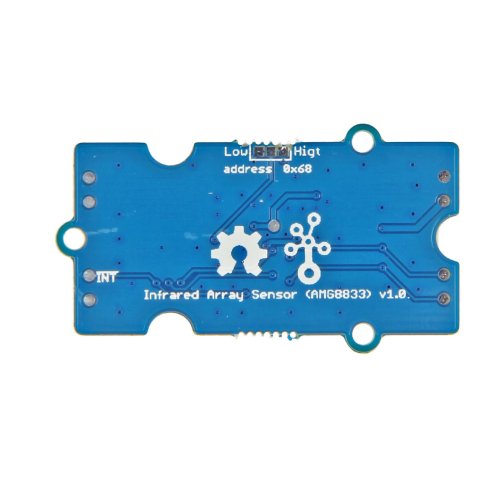

| I2C Address | 0x68(default) \ 0x69(optional) |
- High function home appliances (microwaves and air-conditioners)
- Energy saving (air-conditioning/lighting control)
- Digital signage
- Automatic doors/elevators
Package Includes:
- 1 x Grove - Infrared Temperature Sensor Array (AMG8833)
- 1 x Grove cable
Grove - AMG8833 8x8 Infrared Thermal Temperature Sensor Array
- Brand: Seeed Studio
- Product Code:Seeed-Grove-Infrared-Temperature-Sensor
- Reward Points:41
- Availability:In Stock
-
रo 4,053.00
- Price in reward points:4053
-
- 85 or more रo 3,631.00
