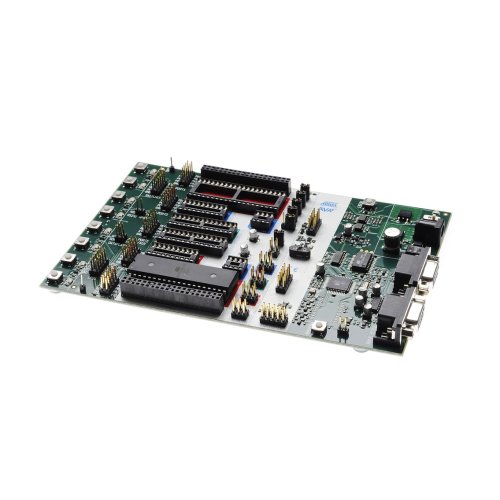

The STK500 is a complete starter kit and development system for the AVR Flash Microcontroller. It is designed to give designers a quick start to develop code on the AVR and for prototyping and testing of new designs.

Features:

RS232 Interface to PC for programming and control
Regulated power supply for 10-15V DC power
Sockets for 8-pin, 20-pin, 28-pin and 40-pin AVR devices
Parallel and Serial High Voltage programming of AVR devices
Serial In-System Programming (ISP) of AVR devices
In-System Programmer for Programming AVR devices in External Target System
8 Push-buttons for general use
8 LEDs for general use
All I/O ports easily accessible through pin header connectors
Additional RS232 port for general use
Expansion connectors for plug-in modules and prototyping area

The minimum hardware and software requirements are:

486 processor (Pentium is recommended)
16 MB RAM
12 MB free hard disk space (AVR Studio)
Windows 95/98/2000/ME and Windows NT 4.0 or higher
115200 baud RS-232 port (COM port)
10 - 15V DC power supply, 500 mA min

Documents:

Warranty:

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

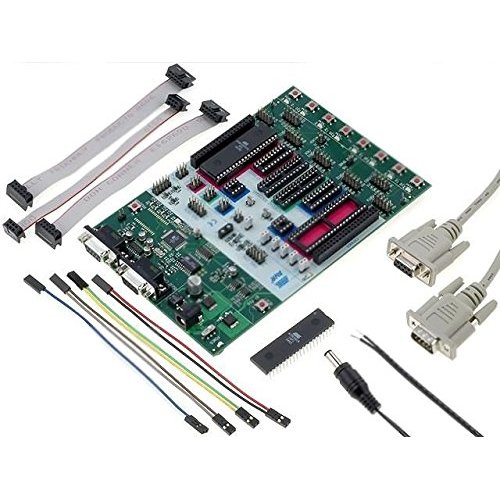

Package Includes:

1 x STK500 starter kit evaluation board
Cables for STK500:
- 2 x 10-wire cables for I/O ports and parallel mode programming
- 1 x 6-wire cable for In-System Programming
- 4 x 2-wire cable for UART and DataFlash connections
1 x 9-pin RS-232 cable
1 x DC power cable
1 x Atmel CD-ROM with datasheets and software
1 x AT90S8515-8PC sample microcontroller

STK500

Brand: Atmel Corp
Product Code:LP-STK500-Kit
Reward Points:147
Availability:In Stock

रo 14,650.00
Price in reward points:14650

Qty

0 reviews / Write a review

Write a review

STK500

रo 14,650.00
