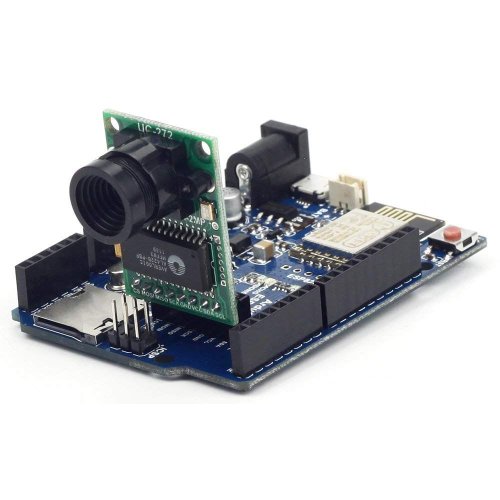

ArduCAM now released a ESP8266 based Arduino board for ArduCAM mini camera modules while keeping the same form of factors and pinout as the standard Arduino UNO R3 board. The high light this ESP8266 board is that it well mates with ArduCAM mini 2MP and 5MP camera modules, supports Lithium battery power supply and recharging and with build in SD card slot. It can be an ideal solution for home security and IoT camera applications.

Features:

Build in ESP8266-12F Module
11 digital input/output pins, IO ports are 3.3V tolerant
1 analog input(3.2V max input)
ArduCAM Mini 2MP/5MP camera interface
Lithium battery recharging 3.7V/500mA max
Building in SD/TF card socket
7-12V power jack input
Build in micro USB-Serial interface

Compatible with Arduino IDE

Pin Definition:

Note:the Arducam Mini Camera Board and the Battery not including in this package

Documentations:

Package Includes:

1 x ArduCAM B0082 ESP8266 ESP-12F UNO Board for ArduCAM Mini Camera compatible Arduino UNO R3
1 x cable

ArduCAM B0082 ESP8266 ESP-12F UNO Board for ArduCAM Mini Camera compatible Arduino UNO R3

Brand: ArduCAM
Product Code:ArdC-B0082-ESP8266-ESP-12F
Reward Points:14
Availability:In Stock

रo 1,369.00
रo 1,198.00
Price in reward points:1426
20 or more रo 1,357.00
50 or more रo 1,363.00
95 or more रo 1,346.00

Qty

0 reviews / Write a review
