Arducam Fisheye, Low Light USB 2.0 Camera based on 1/2.8” 2MP IMX291 image sensor, UVC compliant.

• No extra drivers are needed, the native UVC drivers of Windows, Linux, and Mac shall be compatible with this camera.
• Superior low light feature, shot sharp images even at night.
• Built with a single microphone, capture video with audio.

Features:

• HD and Low Light: This camera adopts the 2MP 1/2.8” IMX291 Color COMS sensor with an 80DB wide dynamic range, can capture the minimum illumination 0.001Lux.
• Real Fisheye: Mounted a high-quality 175°(D) wide-angle M12 Lens, which provides the most widely Field of View compared to other lenses in the series.
• Capture Video with Audio: High frame rates, H.264 30fps@1920x1080; MJPG 30fps@1920x1080; YUY2 30fps@640x 480; Audio, single microphone (optional dual channel). The features of fisheye imaging, low light, and small size help the camera board perform better in the video surveillance system, baby camera, dashcam, and other vision applications.
• Plug&Play: Ready to use, assemble with a mini metal case and rotatable bracket, you can easily put on the desk or any flat surface, or mount on the wall or tripod mount.
• Wide Compatibility: UVC-compliant, support Windows XP/7/8/10, Linux, and Mac OS, just connect the camera to PC, laptop, or Raspberry Pi with the USB cable without extra drivers to be installed. For Mac OS, please open the native software facetime and select the video camera “USB Camera”.

Specifications:

• Camera
• Sensor: 1/2.8” IMX291
• Resolution: 2MP 1945H x 1109V
• Data Format: MJPG/YUY2/H.264
• Frame Rate: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360
• Dynamic Range: 80DB
• Lens
• -Field of View (FOV):D= 175°
• Lens Mount: M12
• Focusing Range: 3.3ft (1M) to infinity
• IR Sensitivity: Integral IR filter, visible light only
• MORE SPECIFICATIONS
• Functionality and Compatibility
• Auto Controlled Features: Saturation, Contrast, Acutance, White balance, Exposure.
• Audio: Single microphone (optional dual channel)
• System Compatibility: Windows, Linux, and Mac with UVC
• Power
• Power Supply: DC 5V
• Working Current: MAX 300mA
• Physical
• Operating Temp.: -4°F~158°F (-20°C~+70°C)

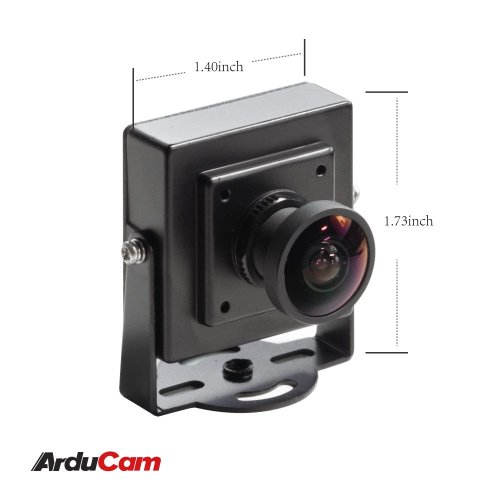

• Dimension: 36mmx44x30mm
• Cable Length: 3.3ft (1M)

Applications:

• Video conference
• Home video surveillance system
• Day&night low light vision security camera system
• Dash cam
• Monitoring 3D printer
• Baby Camera
• Robot and machine vision

Documentations:

• Manual

Package Includes:

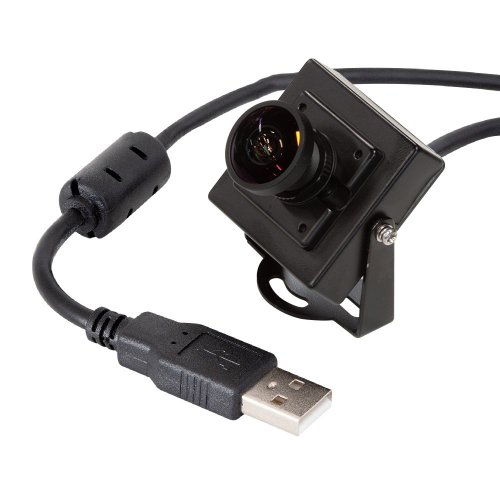

• 1 x Arducam B026101 Fisheye Low Light USB Camera with Mini Metal Case
• 1 x USB Cable
