Features:
  • Supply voltage : 3V-6V
  • PCB Size: 52mm * wide 42mm
Function:
  • Seconds correction (for precise School)
  • Switch to every minute independent display interface
  • Whole point of time (8-20 o\'clock chime can be turned off)
  • Two alarm settings (you can turn off the alarm function)
Kit Features:
  • 0.56 inch special red digital clock for display
  •  Import AT89C2051 for master chip
  • 1.2mm thick PCB made from military grade FR-4 board
  • accurate travel time, travel time error range error -1 to +1 seconds every 24 hours.

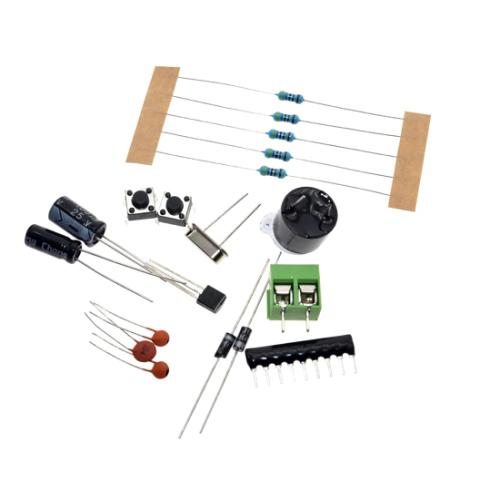

List:

Name Specification Quantity Serial number
0.25w resistance 4.7K 5 R1.R3-R6
Exclusion 470*9 1 R2
electrolytic capacitor 10uf 1 C1
  100uf 1 C4
ceramic capacitor 30p 2 C2, C3
  104 1 C5
diode IN4007 2 D1, D2
Nixie tube 0.4" 1 DS1
crystal oscillator 12HMz 1 T1
key switch 6*6 2 S1, S2
audion 8550 1 Q1
singlechip AT89C2051 1 V1
socket DIP20 1
buzzer 5V 1 V2
terminal KF126-2P 1 J1

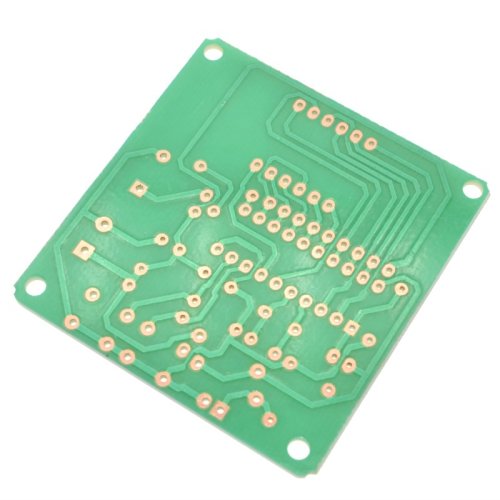

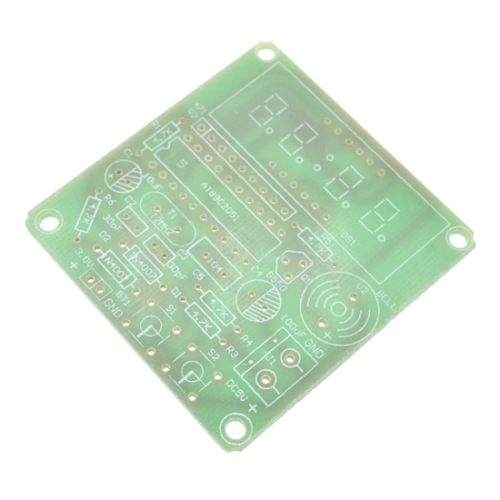

circuit board   1







Package Contents :

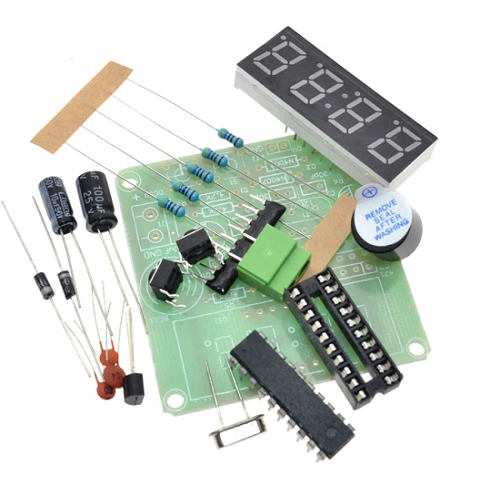

1 x AT89C2051 Digital 4 Bits Electronic Clock Electronic Production Suite DIY Kit



Write a review

Please login or register to review

AT89C2051 Digital Electronic Clock 4-Bit DIY Kit

  • Product Code:PRC-AT89C2051-Digital-Electronic-Clock-Kit
  • Reward Points:2
  • Availability:Out Of Stock
  • रo 200.00

  • Price in reward points:200
