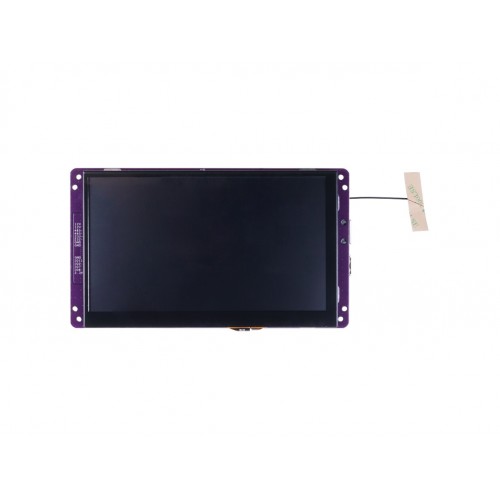

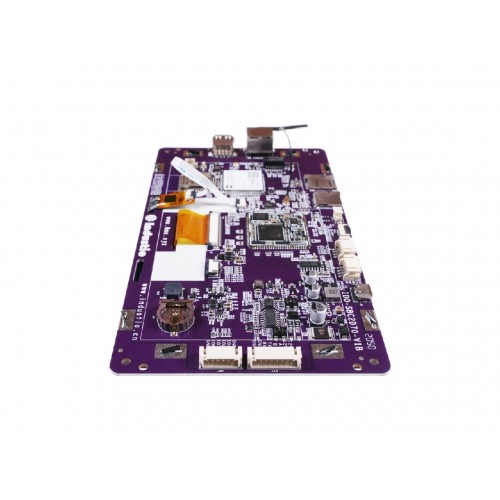

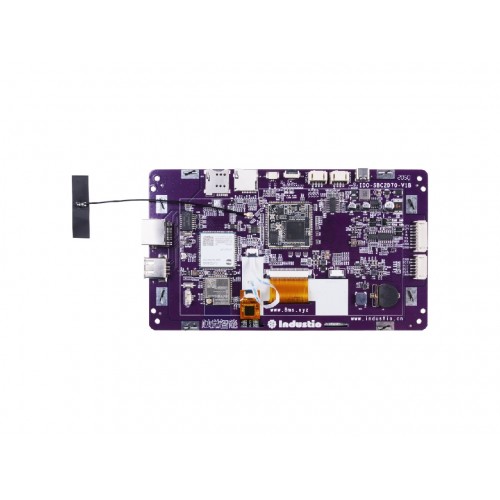

The 7-inch smart display features an ultra-small SoM (System on Module) module based on SigmaStar SSD202 SoC (ARM Cortex A7 processor), with a frequency up to 1.2GHz, 256KB L2-Cache, built-in dual MAC, one PHY, and supporting dual 100M Ethernet interfaces.

Features:

• Powered by SSD202 SoC running at up to 1.2GHz
• Supports 1920x1080 at 60 fps with H.265/HEVC decoder
• DDR2/DDR3 128MB onboard RAM with auto-refresh and self-refresh modes
• 256MB onboard flash and micro-SD card slot for more storage
• Network connectivity using built-in Wi-Fi, Ethernet, and 4G
• Rich I/O peripherals for more connectivity

Specifications:

• CPU
• Singmaster SSD202
• ARM Cortex-A7 dual-core processor, up to 1.2GHz
• Video Processor:
• Supports max resolution FHD(1920x1080)/60 fps decode,
• H.265/HEVC decoder, I/P/B slices, all intra-prediction modes,
• all inter-prediction modes,
• supports max resolution HD(1920x1080)/60 fps
• decode
• RAM
• Built-in DDR2/DDR3 128MB memory,
• support auto-refresh and self-refresh modes
• Storage: Supports 1/2/4-bit SPI-NOR/SPI-NAND Flash, 256MB
• Supported OS: Linux
• Ethernet: 1-channel 10/100Mbps half duplex/full duplex Ethernet
• WIFI: Equipped with Singmaster Wi-Fi chip (SSW101B), with high performance and 500m transmission distance in open space
• Display:
• Video output interface: 1 x RGB, support FHD (1920x1080)/60 fps decoding output, with 1024*600 IPS RGB module by default
• Audio: 1 x left and right channel speaker (PH-4 connector)
• Serial port
• 1x DEBUG（PM_UART）
• 1 x RS232
• 1 x RS485
• USB: 1x USB 2.0（USB female）
• TF card: 1 x Micro-SD card (support SDIO2.0）
• RTC: 1220 button battery, easy to maintain
• Extension interface: 4 x GPIO
• Power input
• Default USB Type-C power supply;
• Optional 4.5~30V DC @1A power supply, rated voltage 12V DC

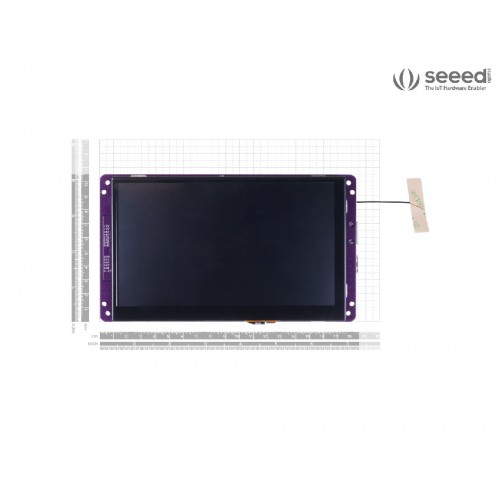

• PCBA dimensions 122mm x 73mm
• Operating temperature: -10~70℃
• Storage temperature: -20~85℃

Applications:

• Smart building indoor intercom
• Smart home central control
• 86-box family central control
• Elevator floor display
• IP network broadcasting device
• Speech recognition equipment

Package Includes:

• 1 x 7-Inch Smart Display (Powered by SSD202 SoC)
