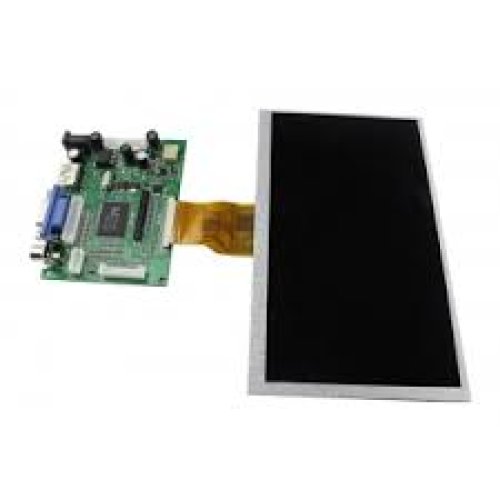

7 inch Raspberry Pi IPS LCD With HDMI VGA AV Screen Display Module For Raspberry Pi, Banana Pi, & Pcduino (800x480).
Features:
- LCD size: 7.0 inch(Diagonal)
- Resolution: 800×3(RGB)×480
- Display mode: Normally White, Transmissive
- Dot pitch: 0.0642(W)×0.1790(H) mm
- Active area: 154.08(W)×85.92(H) mm
- Module size: 164.9(W)×100.0(H)×5.7(D) mm
- Surface treatment: Anti-Glare
- Viewing angle: L70 R70 U50 D60
- Brightness: 220cd/m2
- Contrast: 500:1
- Response time: 20ms
- Backlight: LED
HDMI+VGA+2AV Driver Board:
- Dimension: 90.57 X 65.60 X 12mm
- Work Voltage: DC 5v ~ 12v (Power adapter can be purchase separately here)
- Working Current : 1A ~ 2A.
- Up to Resolution: 7~22inch up to 1920*1080
- Input: Dual/Single LVDS interface
- Work Current: 200~250mA
- Input Signal: HDMI VGA AV
- Audio: Support
- Remote: Optional
- OSD: Support
Package Include:
- 1 x 7 inch LCD SCREEN
- 1 x Driver Board
Note: Pictures shown are for illustration purpose only.Actual product may vary
LCD Display Module - 7 inch
- Product Code:PRC-LCD-Display-Module-7-inch
- Reward Points:70
- Availability:Out Of Stock
-
रo 6,560.00
- Price in reward points:6885
