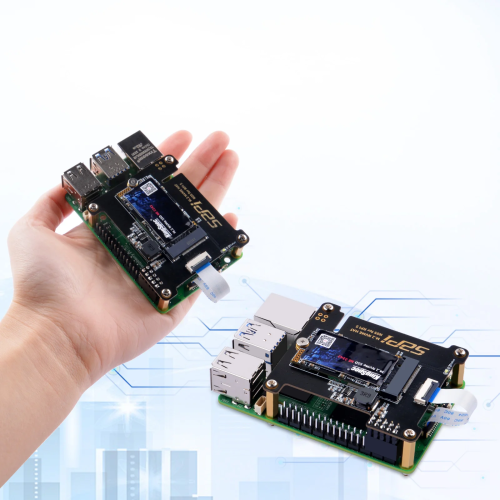

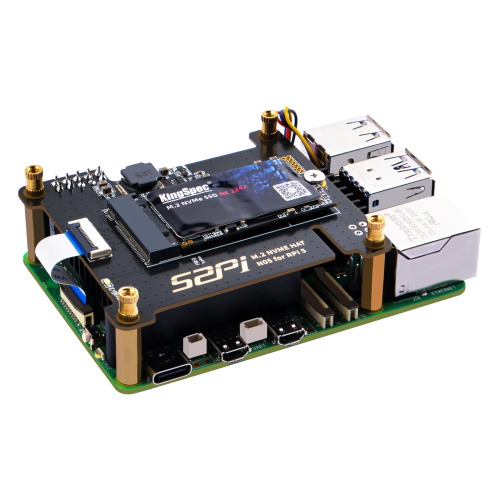

N05 is an NVME M.2 SSD(NVMe 2230, 2242 GEN 3) PIP (PCIe Peripheral Board) for the Raspberry Pi 5 that uses the new PCIE interface of the Raspberry Pi 5 to utilise the NVME M2 SSDs for fast data transfers and ultra-fast booting.

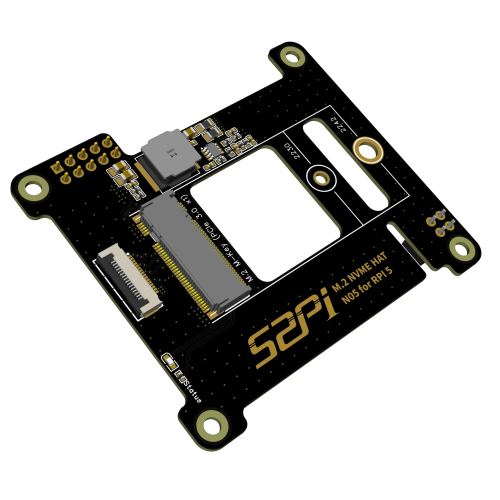

N05 is compatible with the standard HAT size of Raspberry Pi and supports two sizes of NVMe SSD: 2230 and 2242. The included SSD mounting screws make it convenient for users to switch between the two sizes at any time.

Features:

  • Designed for RPI 5: Dedicated to the latest single-board computer, the Raspberry Pi 5.
  • NVMe Capability: Supports installing NVMe (M-key) drives in M.2 format sizes 2230 and 2242, extra custom CNC SSD mount screw, no soldering required.
  • PCIe Support: PCIe x1 interface in both Gen2 & Gen3 standards.
  • Hollow design: Hollow design provides excellent ventilation airflow for cooling.
  • Gold-plated PCB: Gold-plated PCBs offer superior electrical performance.
  • PCIe ultra-short signal lines:The short trace routing of PCIe is more reliable and faster, fully meeting the signal requirements of PCIe 3.0.
  • LED Indicators: Features LED light for M.2 disk activity (“ACT”).

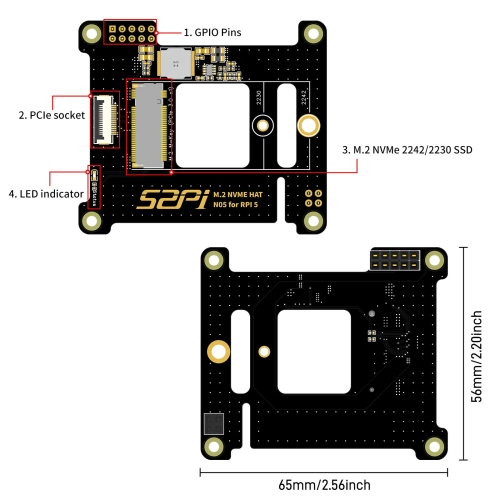

  • Compatible Form Factor:Board format is compatible with the original Raspberry Pi HAT dimensions of 65 x 56.50 mm.
  • M.2 Standard-Compliant Power System: Integrated voltage regulator delivering up to 3A for the 3.3V power rail, compliant with M.2 (NGFF) standard.
  • All Necessary Accessories Included: Comes with a FPC PCIe ribbon, M2 and M2.5 screws, spacers, and extra custom CNC SSD mount screw.
  • Camera/Display fpc cutout: The openings in the PCB allow for the routing of two Display/Camera FPC cables.

Documentation:

Package Includes:

  • 1 x N05 M.2 2242 PCIe to NVMe Top
  • 1 x PCIe FFC cable (40mm length)
  • 4 x M2.5x16mm Spacers
  • 6 x M2.5x5mm Screws
  • 1 x M2x4mm Screws (to fix MVME M2 SSD)

Write a review

Please login or register to review

N05 M.2 2242 PCIe To NVMe Top Extension Adapter Board For Raspberry Pi 5

  • Brand: 52Pi
  • Product Code:NR-52Pi-PCIe-NVMe-Top-Extension
  • Reward Points:14
  • Availability:In Stock
  • रo 1,488.00
  • रo 1,309.00

  • Price in reward points:1488

  • 10 or more रo 1,476.00
  • 20 or more रo 1,464.00
  • 50 or more रo 1,452.00
  • 100 or more रo 1,440.00
