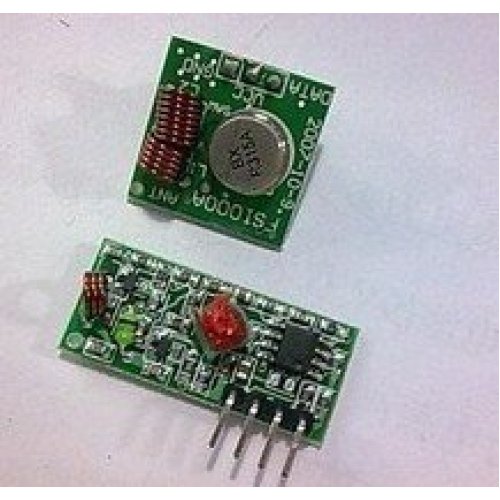

Receiver module parameters

Product Model MX-05V

Working voltage : DC5V

quiescent current: 4mA

Receiving frequency: 433.92MHz

Receiver sensitivity: - 105DB

Size : 30 * 14 * 7mm external antenna: 32CM single-core wire, wound into a spiral

Emission head technology parameters

Product Model: MX-FS-03V

Transmission Distance: 20 -200 meters (varies with voltage)

Operating voltage: 3.5-12V

Dimensions: 19 * 19mm

Ways of working: AM

transfer rate: 4KB / S

transmission power: 10mW

Transmitting frequency: 433M

External antenna: 25cm ordinary multi-core or single core line

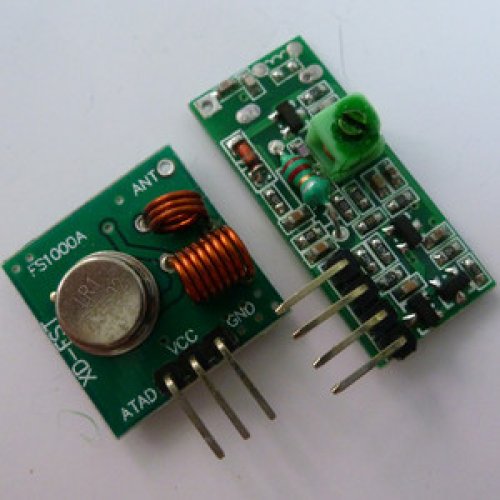

Pinout from left → right: ( DATA ; the VCC ; GND )

Application environment

Remote control switch, receiver module, motorcycles, automobile anti-theft products, household anti-theft products, electric doors, shutter doors, windows, remote control socket, remote control the LED, remote control stereo, remote control electric gate, garage door remote control, remote control retractable doors, remote control volume gate, pan doors, remote control door opener, door closing device control system, remote control curtains, alarm system, alarm, remote control motorcycle, remote control electric cars Remote Control MP3 .

Optional accessories

Supporting the use of remote control series.

Remarks

VCC voltage to the module voltage power supply filtering and want to do;
antenna reception of the module a great impact, it is best to pick a 1/4 wavelength antenna, generally use a 50 ohm single-core wire, the length of the antenna 433M about 17cm ;
reception antenna location on the module also affects the installation, the antenna as far as possible straight away from the shield, high pressure, and interference sources place ; use when receiving frequency, decoding and oscillation resistor should match with the launch.
