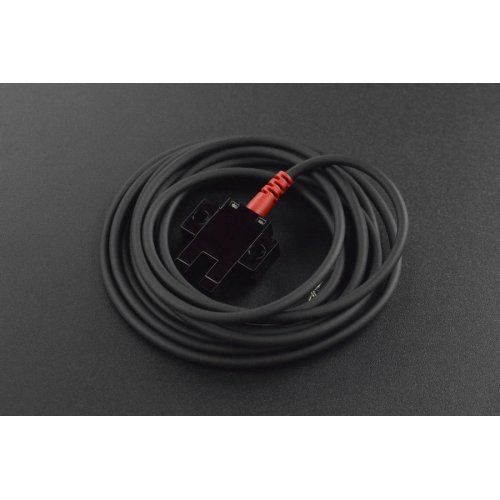

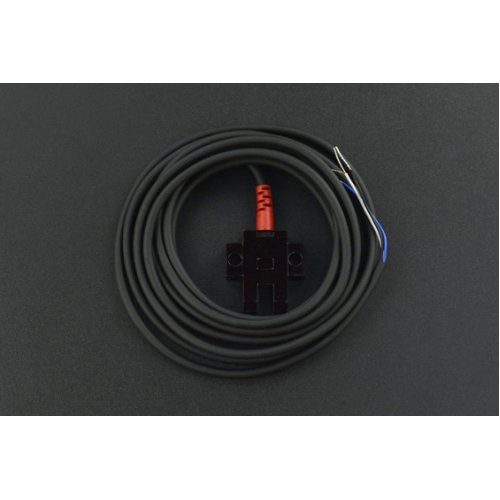

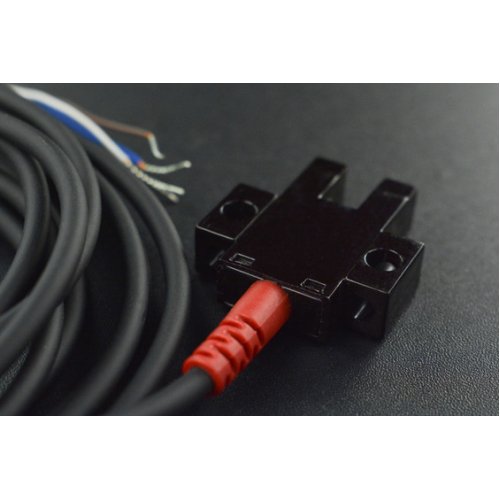

This 4-wire slot type photoelectric switch integrates an optical transceiver module, providing stable performance and strong anti-interference ability. Power it at 10-30V. The detection range of the module is the slot width, which is 5mm. There is an indicator onboard for feeding back device status in real-time. The 4-wire interfaces of the module can be freely switched between normally open and closed status. Also, it comes with protection mechanisms like short-circuit protection, overload protection, and reverse connection. This product is well suitable for distinguishing transparent objects, detecting high-speeding moving things, or counting materials, etc.

Specifications:

• Power Supply: DC10-30V
• Detection Distance: 5MM (Slot width)
• Output Mode: PNP (4-wire connector)
• Connection Mode: Brown line-positive pole, Blue line-negative pole, Black line- normally closed output, White line-normally open output
• Switch Frequency: 500hz
• Response Time: <1.5ms
• Protection Mechanism: short circuit protection, overload protection, reverse connection protection
• Protection Level: IP50
• Size: 26.2x25x7mm/1.03x0.98x0.28

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x 4-Wire Slot Type Photoelectric Switch
