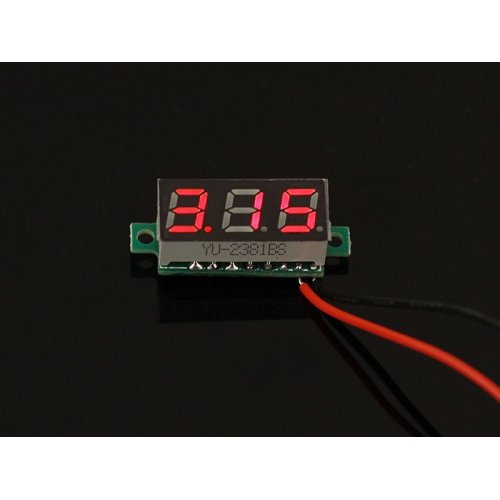

• 0.28 inch LED digital DC voltmeter - Red
This is a super mini voltmeter with 0.28inch LED display. It has reverse connect protection function. When voltage is less than 10V, two decimal places will be shown. When voltage is more than 10V, one decimal place will be shown. This voltmeter can be used to measure mobile phone battery ,car battery and such other application
Specifications:
  • Voltage range: 2.4~ 30V
  • Work current: <30mA
  • Size: 30x11.7x9.2 mm
  • Measure speed: 200ms/one time
  • Accuracy: 3%.
Technical details:
  • Dimensions 0mm x0mm x0mm
  • Battery Exclude
ECCN/HTS
  • HSCODE 8531200000
  • USHSCODE 8531809051
  • UPC 841454113713
  • EUHSCODE 8531202090
  • COO CHINA
  • RoHS 1
Package Includes:
  • 1 x 0.28 inch LED digital DC voltmeter - Red
